Description
🔋 Product Overview
The 3S Type-C Lithium Battery Charging Module is a compact and efficient charging circuit designed for charging 3-cell (3S) lithium battery packs using a convenient Type-C power input. This module boosts the input voltage and provides a stable 12.6V charging output, making it suitable for 18650 lithium-ion batteries, lithium polymer (LiPo) battery packs, and DIY rechargeable battery projects.
This charging board simplifies the process of charging multi-cell battery packs without requiring bulky chargers. Simply connect a compatible Type-C power source and charge your 3S lithium battery pack safely and efficiently.
Available from Rafiq Electronics, this module is ideal for battery pack builders, electronics hobbyists, repair technicians, and DIY enthusiasts.
⚡ Technical Specifications
✅ Module Type: 3S Lithium Battery Charging Module
✅ Input Connector: Type-C USB
✅ Input Voltage: 5V DC
✅ Output Charging Voltage: 12.6V DC
✅ Battery Configuration: 3S (3 Cells in Series)
✅ Compatible Batteries: 18650 Lithium-Ion & Lithium Polymer (LiPo) Batteries
✅ Charging Method: CC/CV (Constant Current / Constant Voltage)
✅ PCB Type: Compact High-Efficiency Charging Circuit
The module automatically boosts the input voltage and provides the correct charging voltage required for 3-cell lithium battery packs.
🔌 Type-C Input Convenience
📱 Modern Type-C connector design
🔋 Compatible with many USB power adapters
⚡ Easy connection and reliable contact
🔧 Convenient charging solution for DIY projects
Using a Type-C input allows users to power the charging module from commonly available USB chargers and adapters.
🛠️ Applications & Uses
🔋 3S 18650 Battery Packs
🔋 3S LiPo Battery Packs
🤖 Robotics Projects
🚗 DIY Portable Power Systems
⚙️ Electronic Projects
🔌 Rechargeable Battery Systems
🛠️ Repair & Development Work
This module is particularly useful for custom battery packs where a compact charging solution is required.
⭐ Key Features & Highlights
✅ Type-C USB input
✅ 12.6V charging output for 3S batteries
✅ Suitable for 18650 and LiPo battery packs
✅ Compact and lightweight design
✅ Easy integration into DIY projects
✅ Reliable charging performance
✅ Quality-tested by Rafiq Electronics
📏 Physical Design
📐 Compact PCB layout
🔧 Clearly marked input and battery terminals
⚙️ Lightweight and easy to install
🧰 Suitable for embedded battery systems
Its small size allows installation inside battery enclosures and portable devices.
🔄 Charging Operation

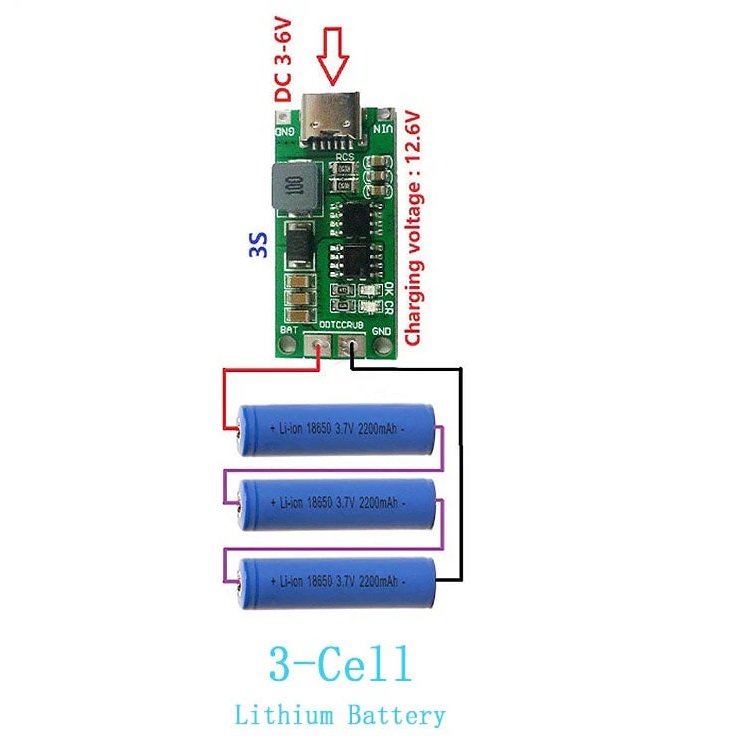

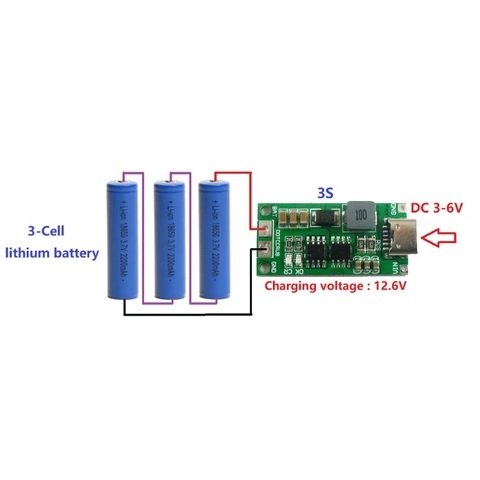

⚡ Connect a suitable 5V Type-C power source
⚡ Connect the 3S battery pack correctly
⚡ The module boosts voltage to proper charging level
⚡ Charges the battery pack using controlled charging method
This helps provide proper charging conditions for lithium battery packs.
🧰 Installation Guidelines
🔧 Verify battery polarity before connection
🔧 Ensure battery pack is configured as 3S
🔧 Use a quality Type-C power source
🔧 Install in a dry and ventilated location
⚠️ Important Notes
⚠️ Designed only for 3S lithium battery packs
⚠️ Observe correct battery polarity
⚠️ Do not short circuit output terminals
⚠️ Verify module specifications before connecting batteries
⚠️ Use with rechargeable lithium batteries only
🔍 Why Choose This Module?
The 3S Type-C 12.6V Charging Module offers a convenient and compact solution for charging multi-cell lithium battery packs. Its Type-C input, efficient boost circuitry, and support for both 18650 and LiPo batteries make it an excellent choice for modern DIY battery projects and portable power systems.
