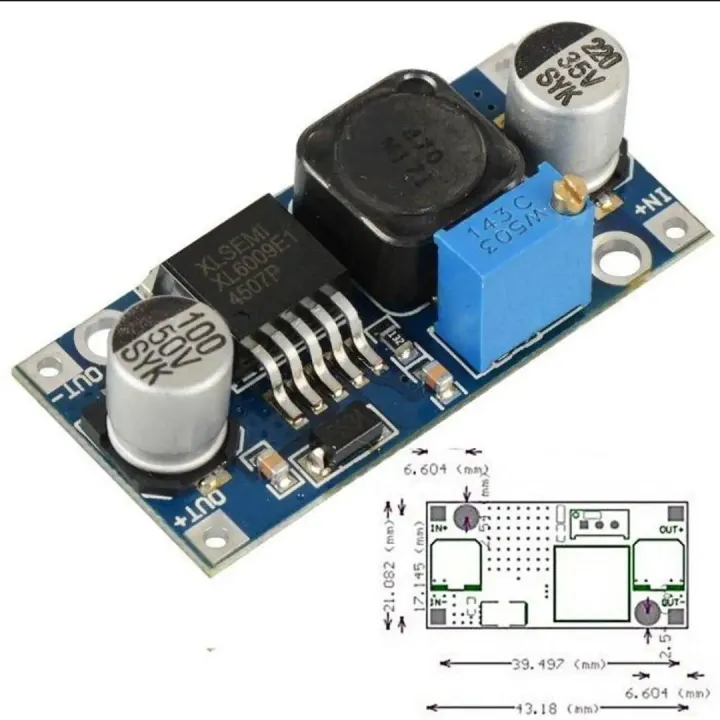

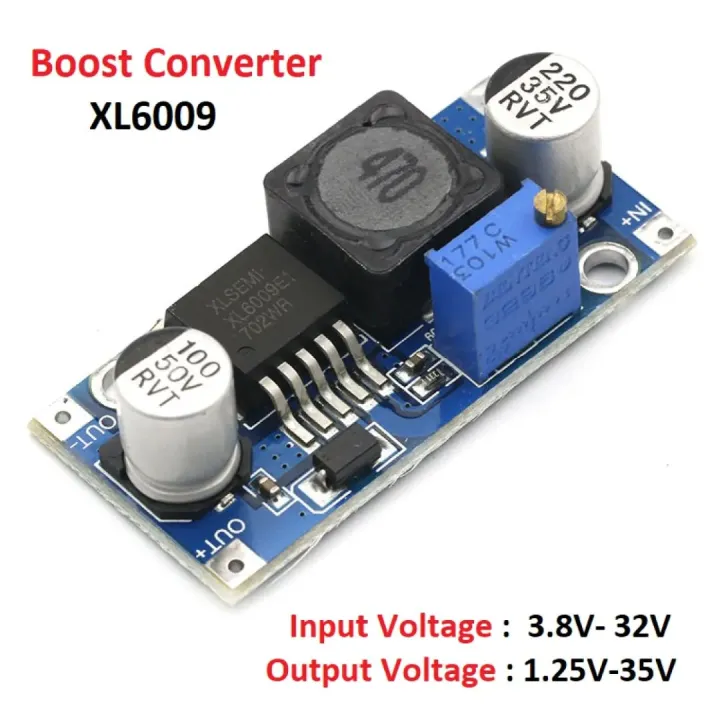

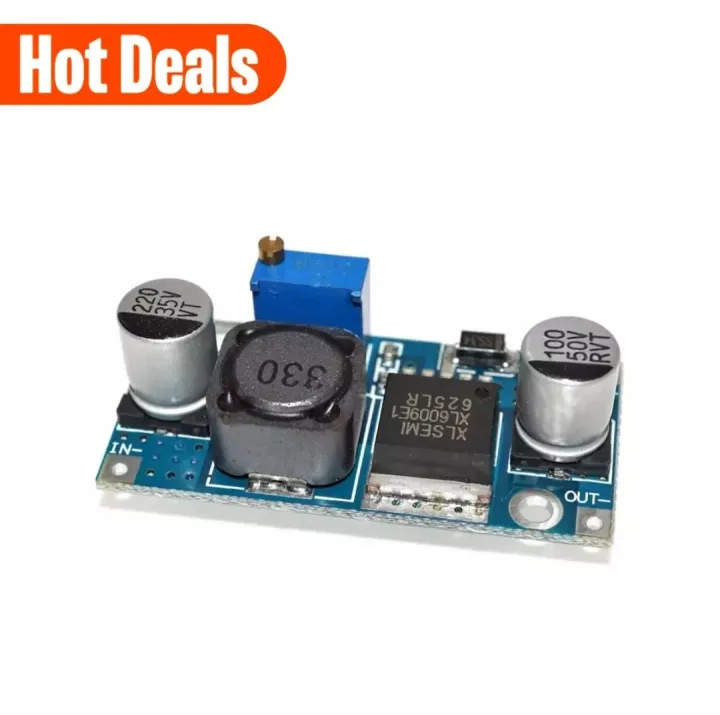

XL6009 Step-up Power Module DC-DC Boost Converter XL6009 DC To DC Boost Converter Voltage Booster XL 6009

Description

The XL6009 is a high-efficiency, non-isolated DC-DC step-up (boost) converter module with an adjustable output voltage and a 4A maximum switching current, primarily based on the XL6009E1 chip, offering superior performance and lower cost compared to previous technologies like LM2577. It converts a wide input voltage range of 3V-32V to a higher output voltage between 5V-35V. Key features include a 400KHz switching frequency for smaller ripple, high conversion efficiency up to 94%, and built-in protection like overheat and short circuit protection.

Key Characteristics and Specifications
Module Type: Non-isolated boost (step-up) converter.
Core Chip: XL6009E1, a third-generation high-frequency switching technology chip.
Input Voltage: 3V-32V, with an optimal operating range of 5-32V.
Output Voltage: 5V-35V (Continuously adjustable).
Input Current: Up to 4A (Max).
Conversion Efficiency: Up to 94%.
Switching Frequency: 400KHz, allowing for smaller filter capacitors and reduced ripple.
Key Features
High Efficiency: Equipped with a 4A high-efficiency MOSFET switch.
Adjustable Output: Allows for easy adjustment of the output voltage to meet specific project needs.
Compact Size: Features a small footprint, making it suitable for various applications.
Improved Performance: Offers better performance and higher current capacity than older chips like LM2577.
Built-in Protections: Includes thermal shutdown and short-circuit protection for increased reliability.
Common Applications
DIY Mobile Power Supplies: For creating custom power banks.
Booster Chargers: Used in charging applications where a higher output voltage is needed.
Power Supply for Electronic Equipment: Provides a stabilized, boosted power supply for various electronic devices.
