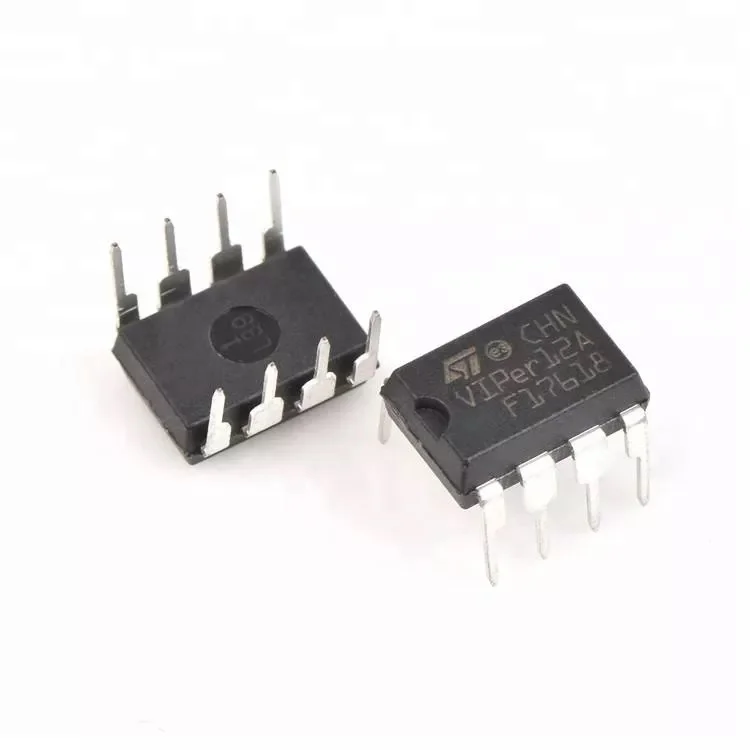

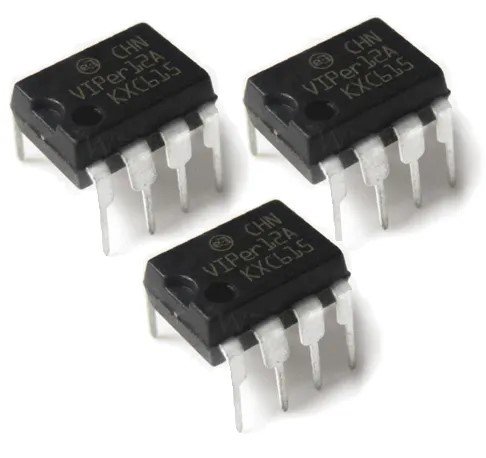

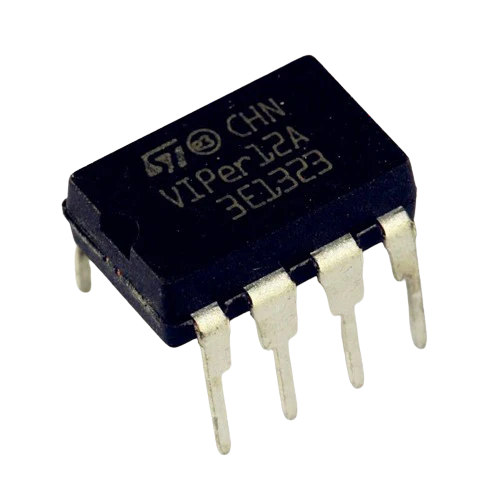

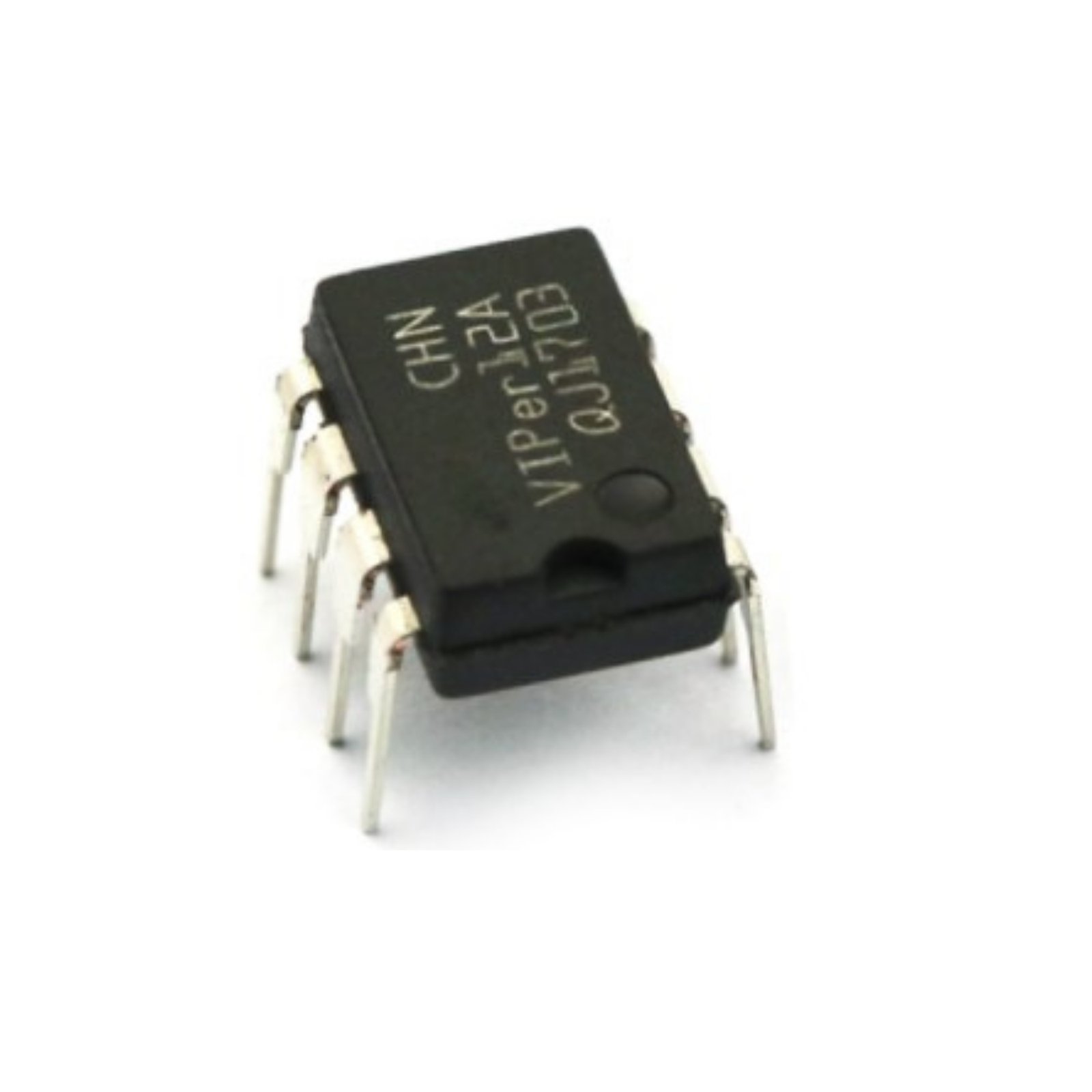

VIPer12A IC – SMPS Power Controller IC for Power Supply & DIY Electronics

Description

🔧 Overview

The VIPer12A IC is one of the most reliable and widely used SMPS (Switched-Mode Power Supply) controller chips. It combines a high-voltage MOSFET with a PWM controller inside a single compact package, making it an excellent solution for creating efficient AC-to-DC power supplies. Whether you are repairing LED drivers, mobile chargers, power adapters, or building your own circuits, the VIPer12A offers stability, efficiency, and long-term durability.

At Rafiq Electronics, we supply 100% original and fully tested VIPer12A ICs to ensure your power supply circuits work safely and reliably.

⚙️ Key Features

• 🔌 Integrated MOSFET — Reduces circuit size and increases efficiency.

• ⚡ Low Power Consumption — Supports energy-saving standby operation.

• 🔧 Built-in Thermal & Overload Protection — Prevents circuit failure.

• 🧩 Wide Input Range — Supports universal AC inputs for multiple designs.

• 🔒 High Reliability — Suitable for long-term industrial and consumer applications.

• 🧱 Compact Package — Ideal for small chargers and compact power supply boards.

📘 Applications

The VIPer12A IC is commonly used in:

• Mobile chargers

• LED bulb drivers

• Adapter repair and SMPS power supplies

• Small appliance power modules

• Telecom and battery charger circuits

• DIY projects and power electronics

• Power backup systems

• DC auxiliary power supplies

Its built-in protection makes it suitable for high-voltage and high-efficiency designs.

🔍 Technical Specifications

• Model Number: VIPer12A

• Type: SMPS Power Controller IC

• Integrated Power MOSFET: Yes

• Operating Frequency: 60–115 kHz

• Output Power: Up to 8W (approx., depends on design)

• Input Voltage: Wide AC input range

• Protection:

  • Overload protection

  • Thermal shutdown

  • Undervoltage lockout

  • Short-circuit protection

• Package: DIP-8 or SOP-8 (depending on stock)

• Applications: Power supply, charger repair, LED driver, adapters, DIY electronics
