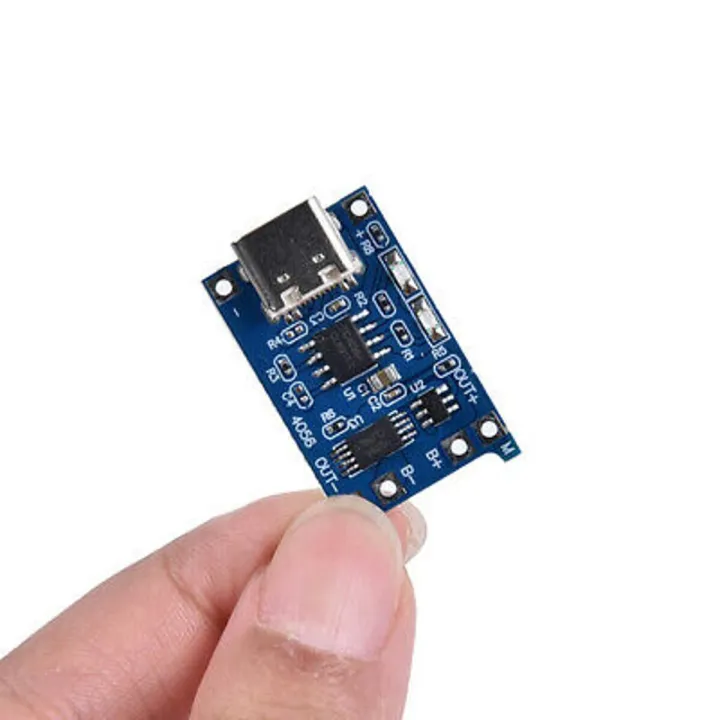

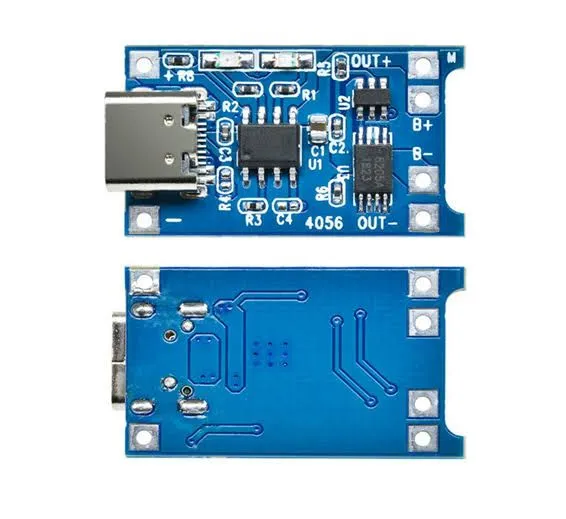

TP4056 Type-C Lithium Battery Charger Module – 1A 3.7V Li-ion Charging Board with Protection

Description

🔋 TP4056 Type-C Charging Module ek small aur efficient charger board hai jo specially single cell lithium-ion (3.7V) batteries ke liye design kiya gaya hai. Type-C input ke saath aap ise easily kisi bhi modern charger ya power bank se charge kar sakte hain.

✨ Key Highlights:

✅ Type-C Input: Modern USB Type-C port – fast & easy charging.
✅ Built-in Protection: Overcharge, Over-discharge & Short-circuit safety features.
✅ 1A Charging Current: Safely charges single 3.7V Li-ion or 18650 cell.

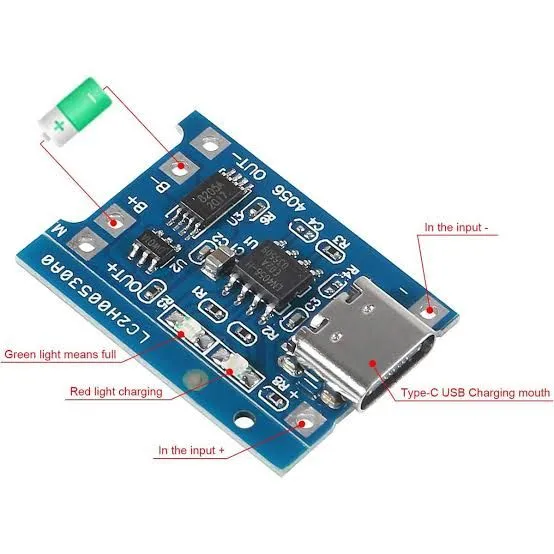

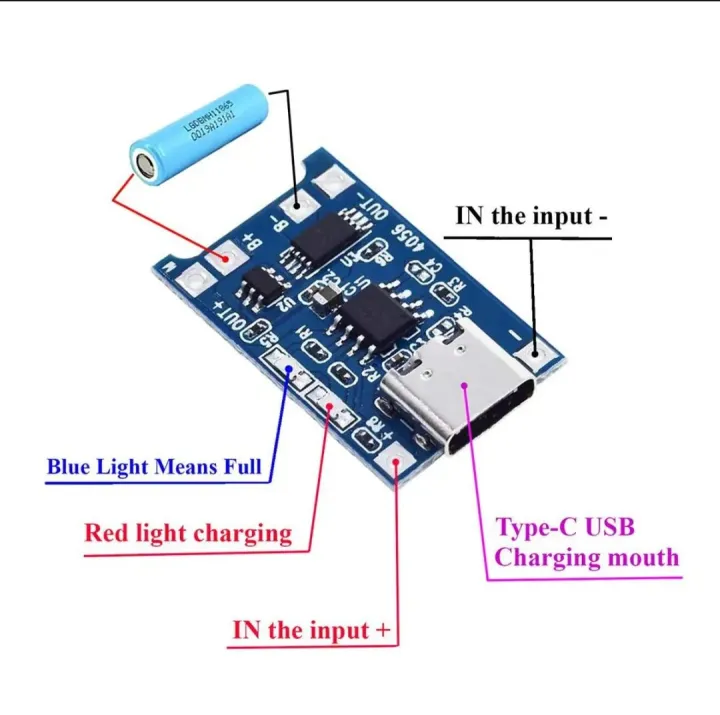

✅ Status Indicators: LED indicators for charging & full charge status.
✅ DIY Friendly: Perfect for power banks, small electronics, IoT projects & battery-based gadgets.
✅ Compact Design: Easily fits into small enclosures & custom projects.

📊 Technical Specifications:

• Input Port: USB Type-C

• Input Voltage: 5V

• Battery Type: 3.7V Lithium-ion / LiPo

• Charge Current: 1A (Adjustable with resistor)

• Protection: Overcharge, Over-discharge, Over-current, Short Circuit

• LED Indicators: Charging (Red), Full Charge (Blue/Green)
