Description

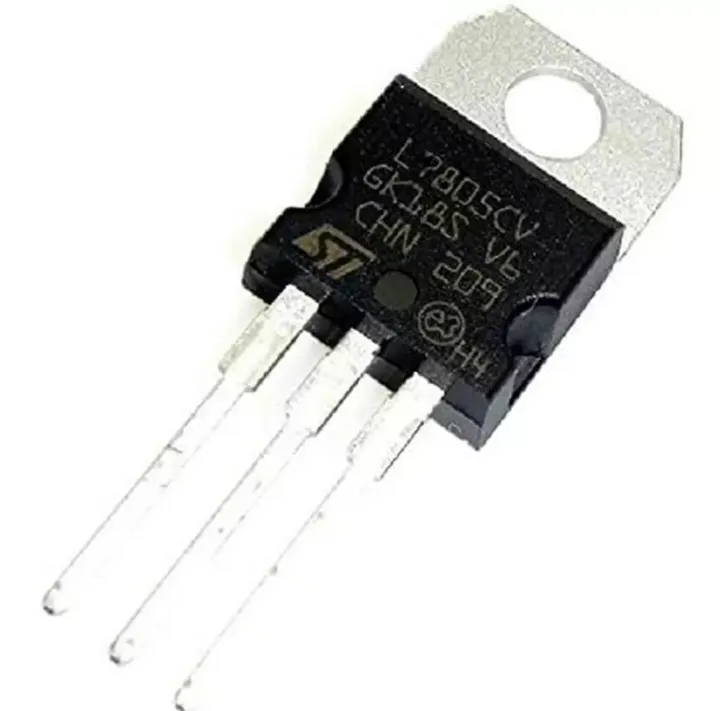

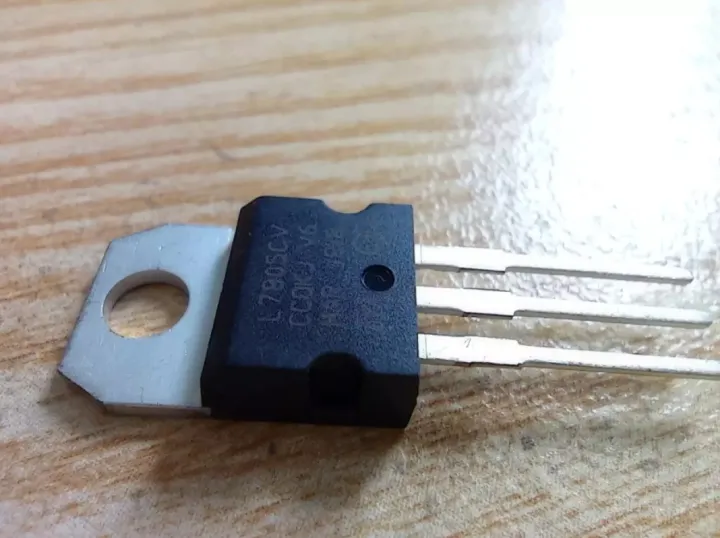

The 7805 is a fixed, linear voltage regulator IC that provides a stable +5V DC output from a higher, fluctuating input voltage (typically 7V to 35V). It contains internal circuitry that stabilizes the voltage by dissipating excess energy as heat, often requiring a heatsink for larger loads. With three pins for input, ground, and regulated output, and features like thermal shutdown, the 7805 is a popular, low-cost component for powering sensitive 5V electronic devices and circuits.
Electrical4U
Key Characteristics:
Function: A positive linear voltage regulator.
Fixed Output: Always provides a regulated +5V DC.
Input Voltage Range: Accepts a range of input voltages, typically from 7V up to 35V.
Output Current: Capable of providing a maximum output current of around 1A.
Linear Regulation: Works by dropping excess voltage and dissipating it as heat.
Internal Protection: Includes a thermal cutoff feature to protect the device from overheating.
Packaging: Often comes in a TO-220 package, requiring proper heat dissipation with a heatsink for efficient operation.

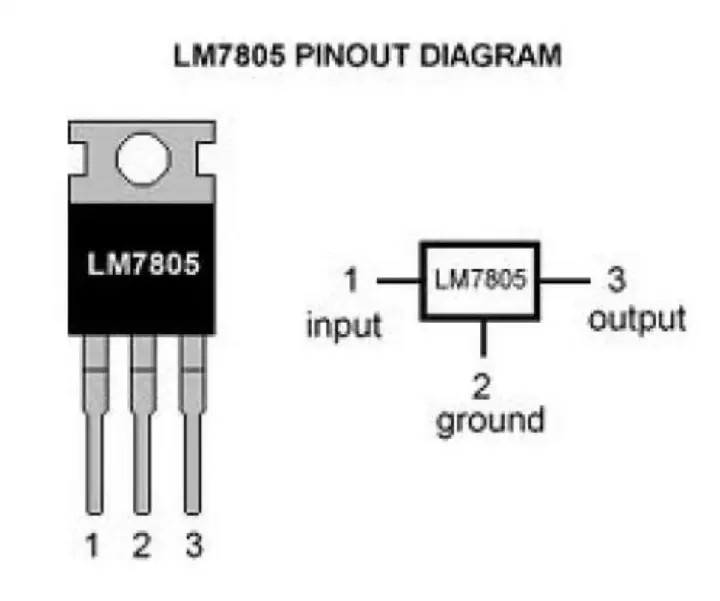

Pinout (TO-220 package):
Pin 1 (Input): Receives the unregulated, higher input voltage.
Pin 2 (Ground): The 0V reference point for the circuit.
Pin 3 (Output): Provides the stable +5V regulated output voltage.
Why it’s used:
Simplicity:
Easy to implement in circuit designs, requiring minimal external components.
Stability:
Ensures a consistent and reliable 5V supply, crucial for sensitive microcontrollers and other electronic components.
Cost-Effectiveness:
An inexpensive and readily available component for hobbyist and commercial projects alike.
Wide Applications:
Used in power supplies for phones, UPS systems, and various other electronic devices that need a stable 5V power source.
