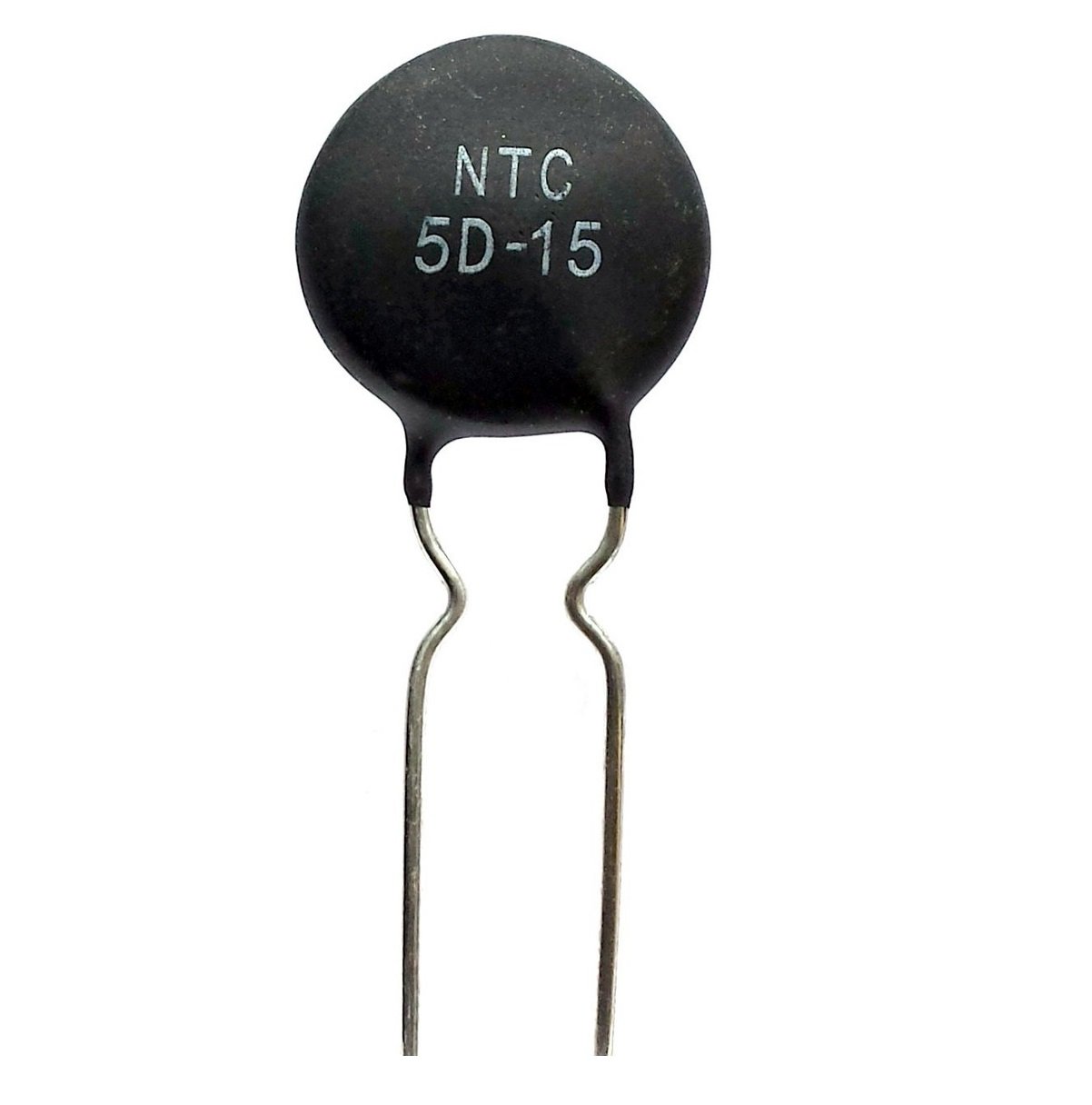

🔧 NTC 5D-15 Thermistor – High Quality Inrush Current Limiter
The NTC 5D-15 Thermistor is a high-performance, temperature-dependent resistor designed to protect electrical circuits by limiting inrush current. This component is widely used in AC and DC power supply systems, SMPS circuits, LED drivers, chargers, and transformer-based equipment. Rafiq Electronics brings you the original and reliable 5D-15 thermistor suitable for DIY projects, repairs, and professional use.
📌 What is NTC 5D-15?
NTC stands for Negative Temperature Coefficient, meaning its resistance decreases as temperature increases.
The 5D-15 model indicates:
-
5Ω cold resistance
-
15mm disc diameter
This makes it ideal for medium-power devices where surge protection is necessary.
⭐ Key Features
🔥 Inrush Current Limiting
✅ Prevents sudden high current when power is switched on
⚙️ Protects circuit components from overload damage
🔌 Extends life of transformers, rectifiers, switch-mode power supplies
🛡️ High Durability & Reliability
✅ Made with heat-resistant material
♨️ Stable performance under continuous operation
🧩 Suitable for both AC and DC circuits
📏 Perfect Disc Size – 15mm
✅ Compact design
📐 Only 15mm for easy installation in small circuits
🔧 Ideal for UPS systems, chargers, and LED power supplies
⚡ 5 Ohm Cold Resistance
✅ Excellent resistance at startup
⚡ Efficient current limiting capability
🔋 Best for circuits up to 2–4 amps (general use)
🛠️ Multipurpose Application
✅ SMPS power supplies
🔌 LED drivers
🔧 UPS & inverter circuits
⚙️ Transformers
🔋 Battery chargers
🖥️ Computer power supplies
🔌 Household electronics and DIY kits
🧪 Technical Specifications
| Specification | Value |
|---|---|
| Model | NTC 5D-15 |
| Type | Negative Temperature Coefficient Thermistor |
| Cold Resistance (25°C) | 5Ω |
| Disc Diameter | 15mm |
| Max Steady Current | 2–4A (approx.) |
| Function | Inrush current limiting |
| Mounting Type | Through-hole |
| Material | High-quality thermistor ceramic |
🧰 Why Buy From Rafiq Electronics?
At Rafiq Electronics, we provide original and tested components suitable for all kinds of electronics repair and hobby projects. Our NTC 5D-15 thermistors are reliable, durable, and ideal for long-term use in both household and industrial equipment.
