Description
Micro USB TP4056 Charging Module ek advanced Lithium Battery Charger Board hai jo 3.7V Lithium-Ion aur Lithium-Polymer Cells ko safely charge karta hai. Ye module constant current / constant voltage (CC/CV) charging method use karta hai aur DIY Electronics, Power Bank Projects, Arduino & Robotics ke liye perfect hai.
🔹 Technical Specifications:
✔ Input Voltage: 4.5V – 5.5V DC (via Micro USB ya pin header)
✔ Charging Voltage: 4.2V ± 1%
✔ Charging Current: 1A (default, adjustable by resistor)
✔ Battery Type: 3.7V single cell Lithium-Ion / Lithium-Polymer
✔ Protection Features:
-
✅ Overcharge Protection (battery ko 4.2V se zyada charge nahi karega)
-
✅ Over-discharge Protection (battery ko safe limit se neeche discharge hone nahi dega)
-
✅ Short Circuit Protection (unexpected fault se bachata hai)

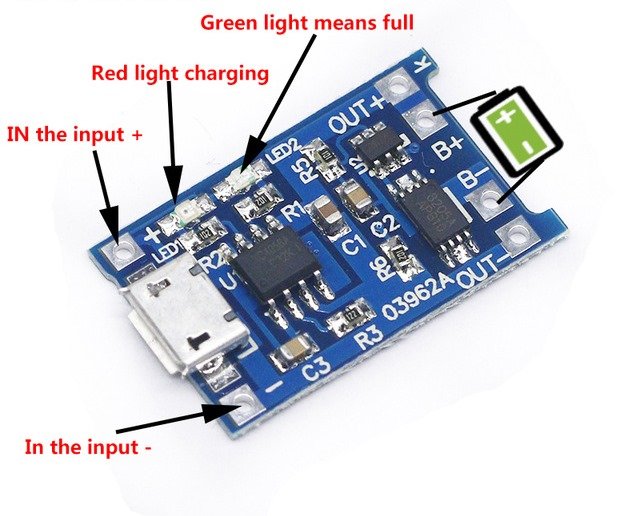

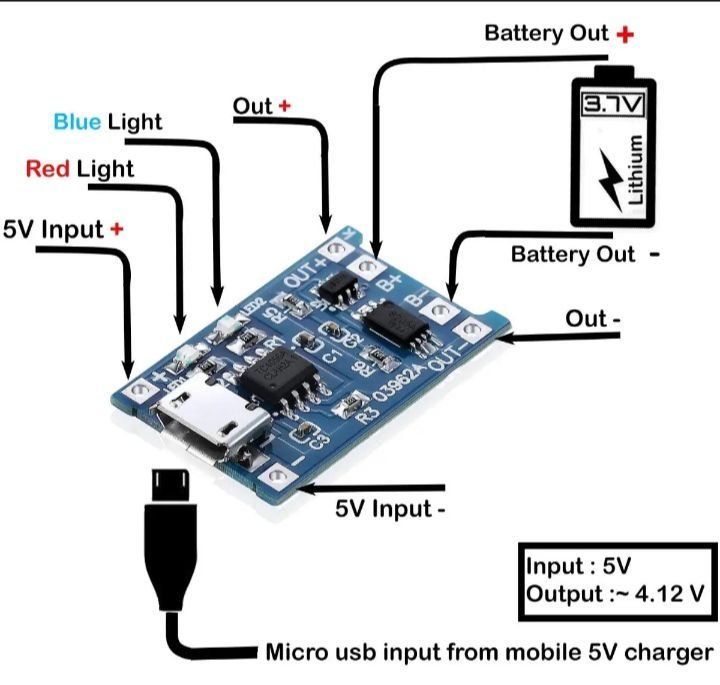

✔ LED Indicators: -
🔴 Red = Charging
-
🟢 Blue/Green = Fully Charged
🔹 Main Features & Highlights:
✔ Safe & reliable lithium battery charging module
✔ Micro USB input for easy connection (use with phone charger or USB cable)
✔ Built-in short circuit, overcharge & over-discharge protection

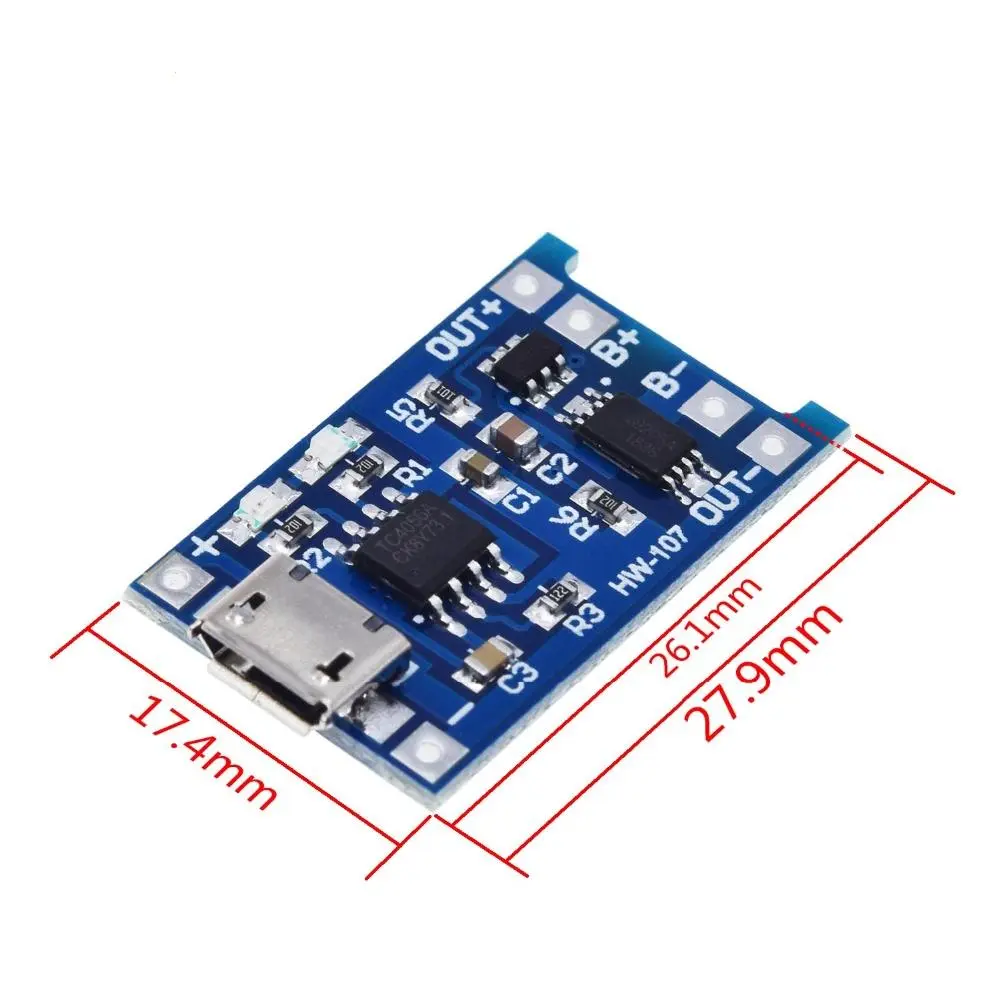

✔ Compact design, easy integration in DIY projects
✔ Perfect for 18650 & Li-Po battery charging
🔹 Applications:
-
DIY Power Banks
-
Arduino & Raspberry Pi Portable Projects
-
Lithium-Ion / Li-Po Battery Charging
-
Robotics & Embedded Systems
-
LED Lighting & Small Gadgets
