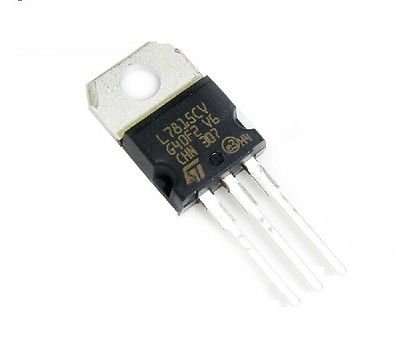

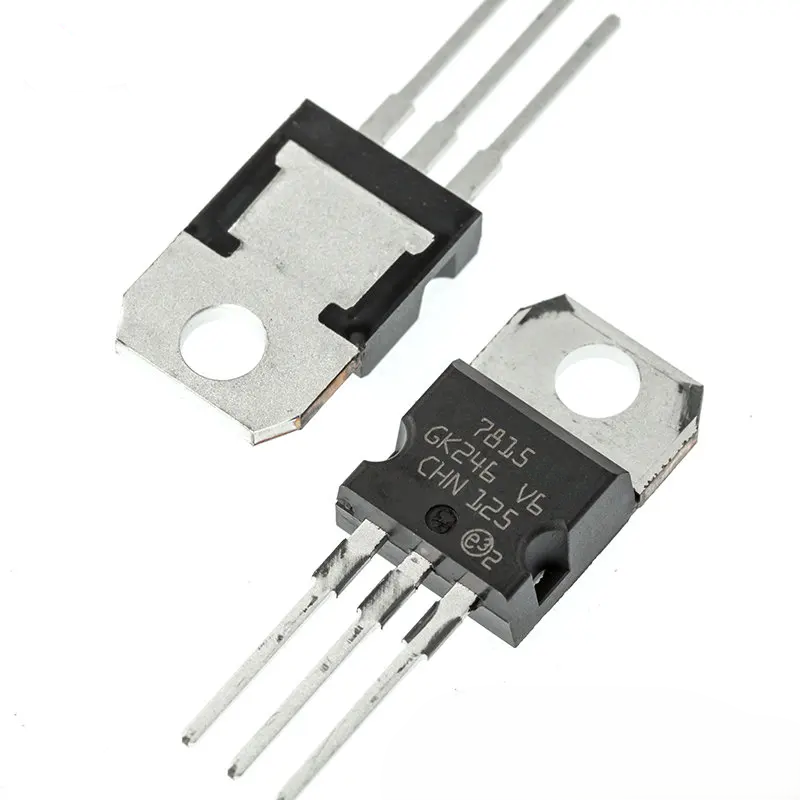

LM7815 Voltage Regulator IC – 15V Fixed Output, 3-Pin Linear Regulator for Power Supply & DIY Projects

Description

Looking for a dependable voltage regulator for your electronics projects? The LM7815 Voltage Regulator IC is a high-performance linear regulator that provides a stable +15V DC output—perfect for use in various electronics, DIY kits, embedded systems, and circuit repair work.

This IC is part of the well-known 78XX series, widely used in regulated power supplies due to its efficiency, safety features, and ease of integration. Whether you’re a hobbyist, engineer, or student, the LM7815 is a must-have for reliable voltage control.

🌟 Product Highlights & Features

⚡ Fixed 15V Output Voltage

Provides a stable +15V regulated output, essential for sensitive analog and digital circuits.

🔋 Wide Input Voltage Support

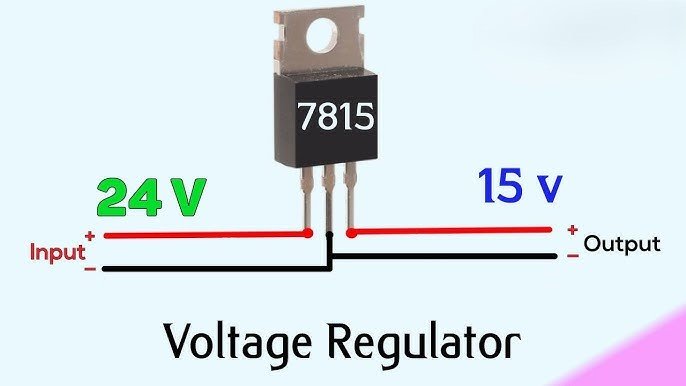

Operates effectively with input voltages ranging from 17V to 35V, ensuring flexibility in different power configurations.

🌡️ Thermal Overload Protection

Built-in feature shuts down the IC during excessive heat conditions, preventing damage to your circuit.

🔒 Short-Circuit & Overcurrent Protection

Protects your components in case of accidental load faults or short circuits—making it ideal for long-term, safe operation.

🌈 Low Ripple and Noise Output

Delivers a clean DC output, suitable for audio circuits, sensor modules, microcontrollers, and analog devices.

🛠️ 3-Pin Simple Design

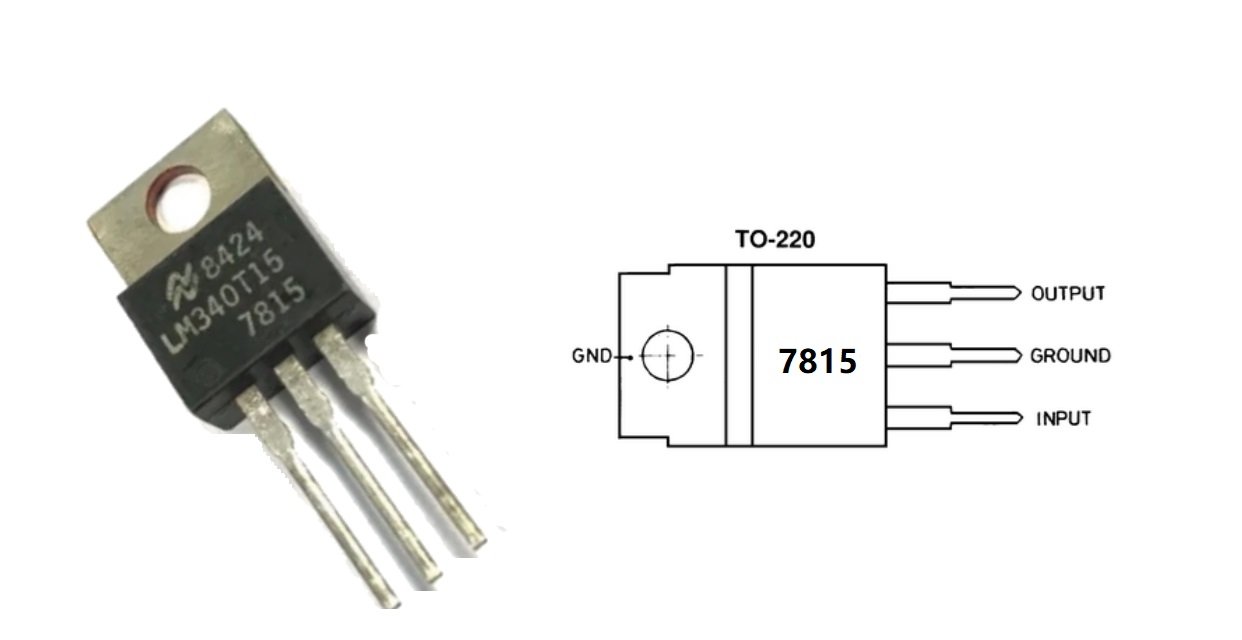

Simple 3-pin configuration: Input, Ground, Output — very easy to use even for beginners in electronics.

🎯 Output Current up to 1.5A

Supports output current up to 1.5 Amperes, sufficient for powering microcontroller systems, LEDs, small motors, and more.

📐 Technical Specifications
