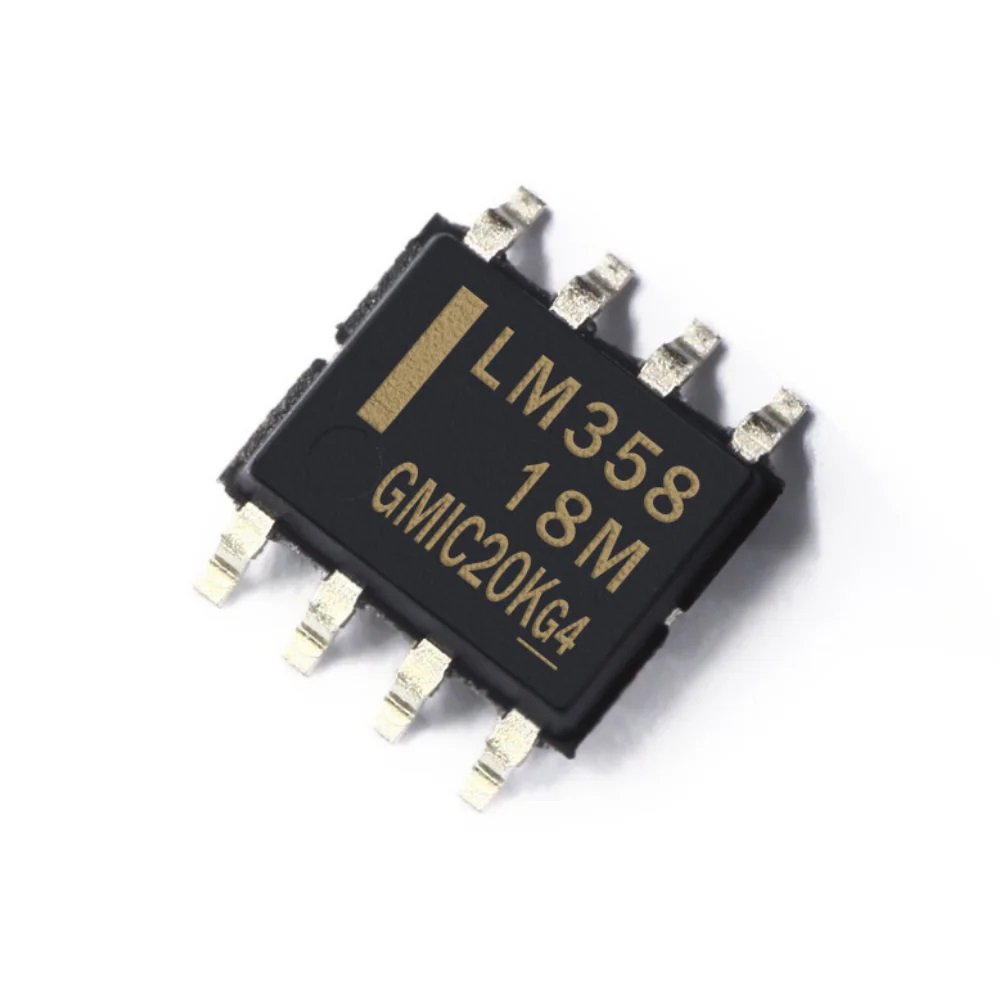

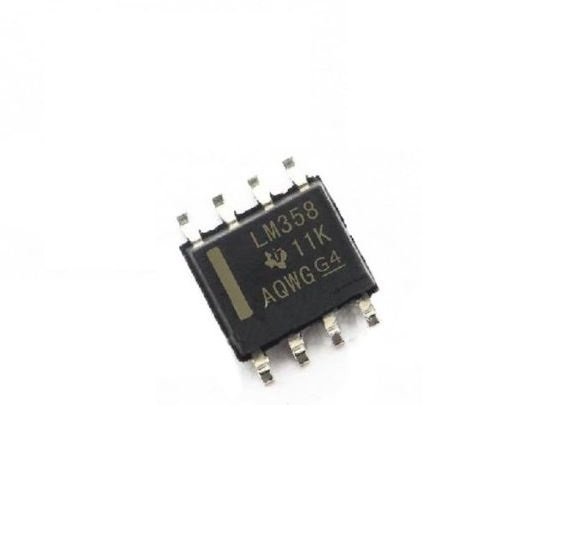

LM358 SMD IC – Dual Operational Amplifier 3 V-32 V Single Supply in SMD Package

Description

The LM358 SMD IC is a highly versatile dual operational amplifier, optimized for modern surface-mount electronics and ideal for everything from sensor interfaces to power supply monitoring. This chip integrates two independent op-amps in a single compact SMD-compatible package, and supports single-supply operation from as low as 3 V up to about 32 V, making it perfect for both battery-powered and mains-powered designs.

⚙️ Key Features

• Operates from 3.0 V to 32 V in single-supply mode, and ±1.5 V to ±16 V in dual-supply mode.

• Very low supply current drain (e.g., ~500 µA typical per amplifier) – excellent for battery-operated and low-power applications.

• Input common-mode range includes ground (0 V), enabling direct sensing of signals near ground without needing negative supply.

• Output voltage swing can approach the negative supply (ground) in many cases, increasing flexibility in design.

• SMD versions available in small packages (such as SOIC-8, TSSOP, VSSOP) for compact PCB layouts.

🔧 Applications

The LM358 SMD IC is ideal for a wide range of applications:

• Sensor signal conditioning (LDR, thermistor, Hall sensor etc.)

• Audio pre-amplification and filters

• Power supply monitoring, voltage feedback loops, DC-DC converter control

• Battery-powered devices, portable instrumentation, robotics

• General-purpose amplifier circuits and DIY electronics boards

🧪 Technical Specifications (Highlights)

• Device Type : Dual Operational Amplifier (2 channels)

• Supply Voltage (Single) : 3 V to 32 V

• Supply Voltage (Dual) : ±1.5 V to ±16 V

• Typical Input Offset Voltage : ~2-3 mV

• Unity Gain Bandwidth : ~1 MHz

• Package Types : SOIC-8, TSSOP-8, VSSOP-8, SOT23-8 etc.

• Temperature Range (varies with manufacturer) : 0 °C to +70 °C (commercial) or extended -40 °C to +85 °C (industrial)

🌟 Why Choose This IC?

If you’re designing compact electronics and need reliable dual-channel amplification or signal processing capability, the LM358 SMD IC is an excellent choice. Its flexibility in supply voltage, low power consumption, and SMD packaging make it suitable for both hobbyist and professional applications. You’ll find it especially useful in modern PCB layouts where space is limited and single-supply operation is preferred.

🏪 Quality Assurance and Supply

At Rafiq Electronics, we supply genuine, high-quality LM358 SMD ICs verified for performance, so you can confidently integrate them into your electronics projects and products. Each unit is checked to meet specification standards and ensure stable operation in your designs.
