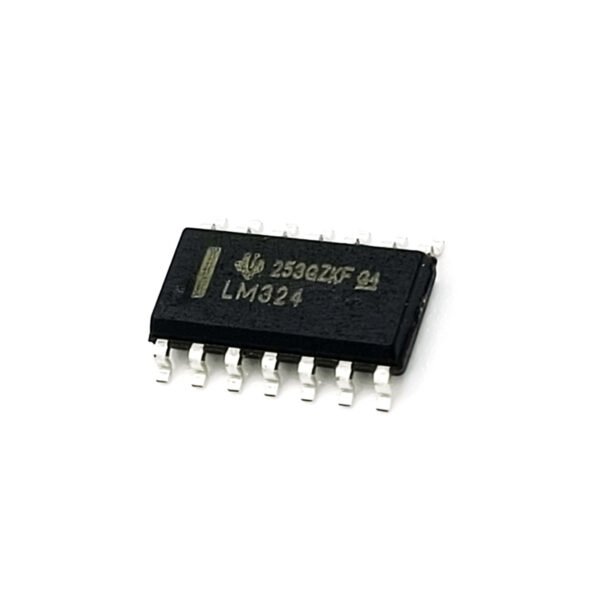

LM324 SMD IC – Quad Operational Amplifier 3V-32V Supply, SMD Package (Surface-Mount)

Description

The LM324 SMD IC is a versatile, high-value integrated circuit that brings four independent operational amplifiers (op-amps) into a single surface-mount package. Designed for modern electronics where space is at a premium and high flexibility is required, this chip opens up a wide range of possibilities—from power supply circuits to sensor interfaces and audio amplification.

✅ Key Features

• Single-supply operation from 3.0 V to 32 V (or dual ± supplies in some versions). onsemi+2Mouser Electronics+2

• Four amplifiers per package, enabling compact but powerful multi-channel designs. Texas Instruments

• Input common-mode voltage includes ground, meaning the op-amps can sense voltages down to the negative supply line. Mouser Electronics+1

• Short-circuit protected outputs, improving robustness in practical circuits. onsemi

• Low cost and widely available in SMD formats—ideal for hobby and industrial designs alike. componentstree.com+1

🔧 Technical Specifications (Highlights)

• Supply Voltage: 3.0 V to 32 V (single supply) or ±1.5 V to ±16 V (dual). Mouser Electronics+1

• Typical Input Offset Voltage: ~2mV (varies by version). Texas Instruments+1

• Large DC Gain: ~100 dB typical. alldatasheet.com

• Bandwidth (unity gain): ~1 MHz typical. alldatasheet.com

• Operating Temperature Range: Typically 0°C to +70°C for commercial version; industrial versions go –40°C to +85°C. Mouser Electronics

🌐 Applications

• Sensor signal conditioning and amplifier circuits in automation and instrumentation.

• Audio pre-amplifiers, filters, mixers.

• Power supply monitoring and control, DC-DC converter feedback loops.

• Battery management systems, uninterruptible power supplies (UPS).

• General purpose op-amp functions in PCBs, repair boards, SMD projects.

🎯 Why Choose LM324 SMD IC?

The LM324 SMD IC offers a unique combination of flexibility (quad channels), wide supply range, and SMD compatibility—ideal for both hobby and professional use. Whether you’re building a compact PCB, designing a multi-sensor interface, or upgrading a repair board to SMD form, this chip fits the bill. And because it supports single‐supply operation, you won’t always need dual rails, simplifying designs.

🛠 About Rafiq Electronics

At Rafiq Electronics, we provide tested and quality SMD components including the LM324 series. Each IC is verified for authenticity and compatibility—making it a trustworthy choice whether you’re prototyping, doing repair work or small batch manufacturing.
