Description

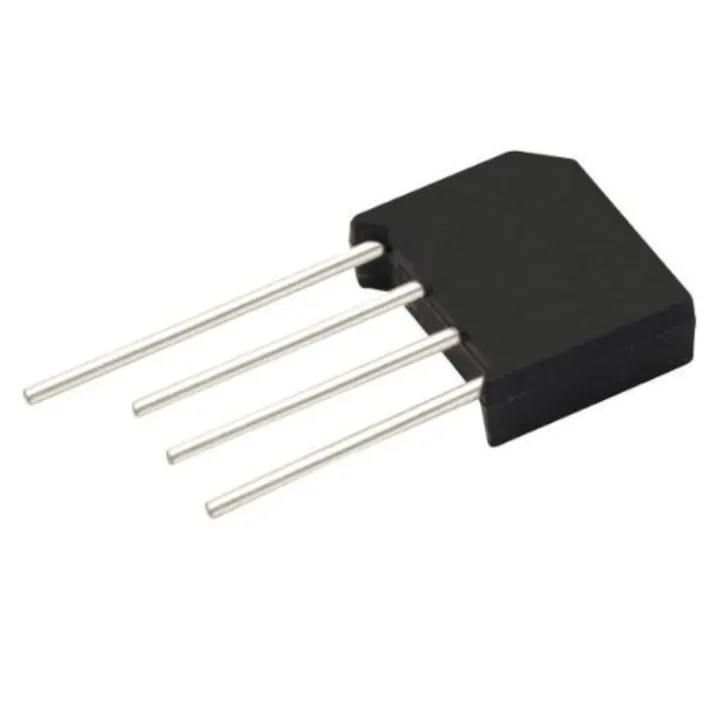

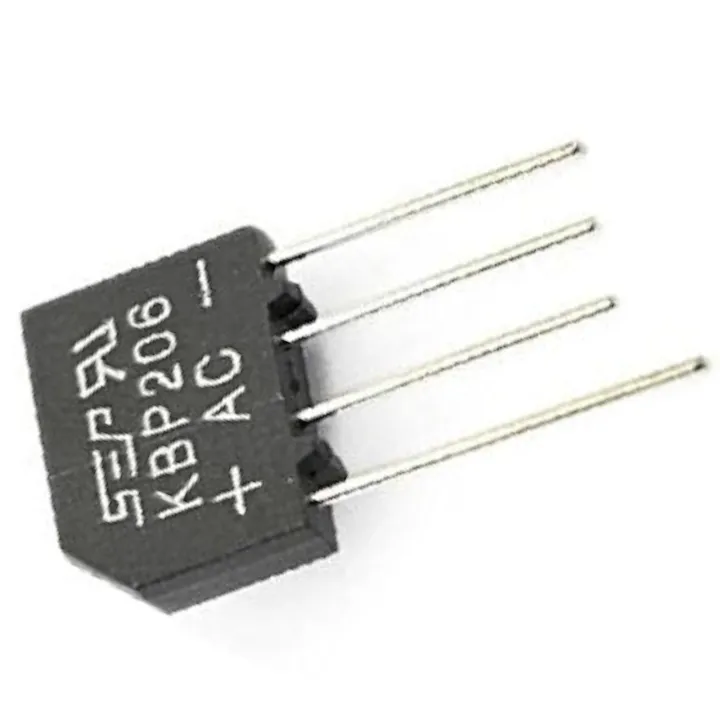

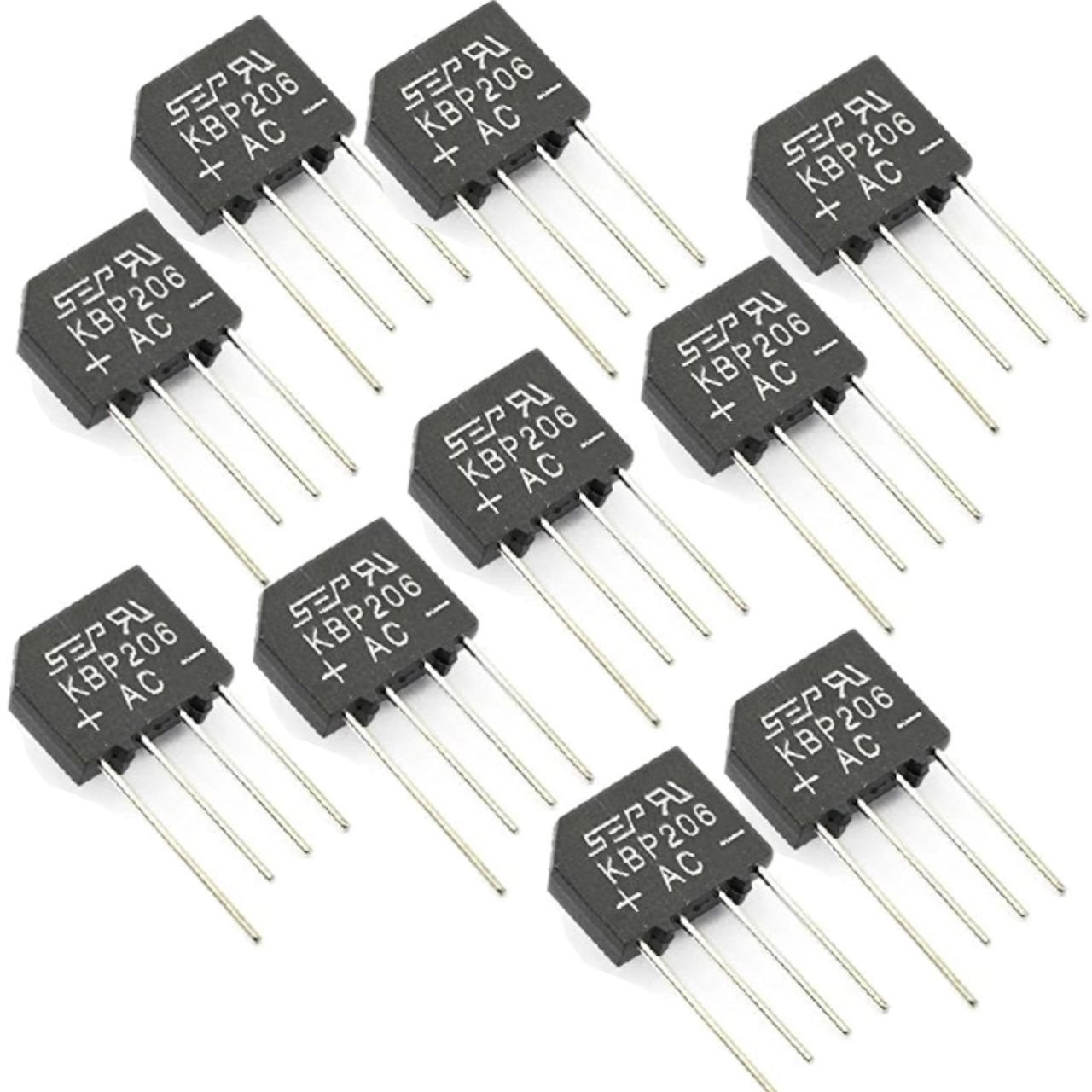

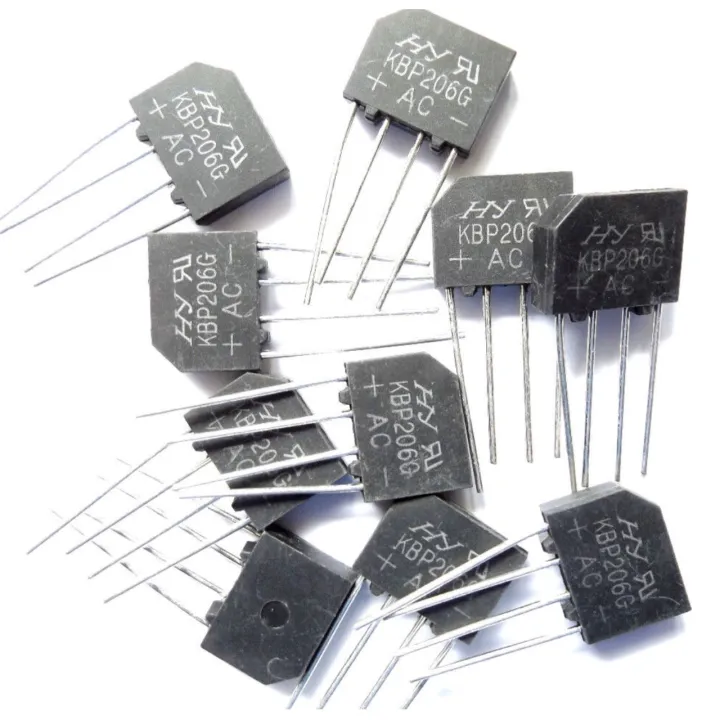

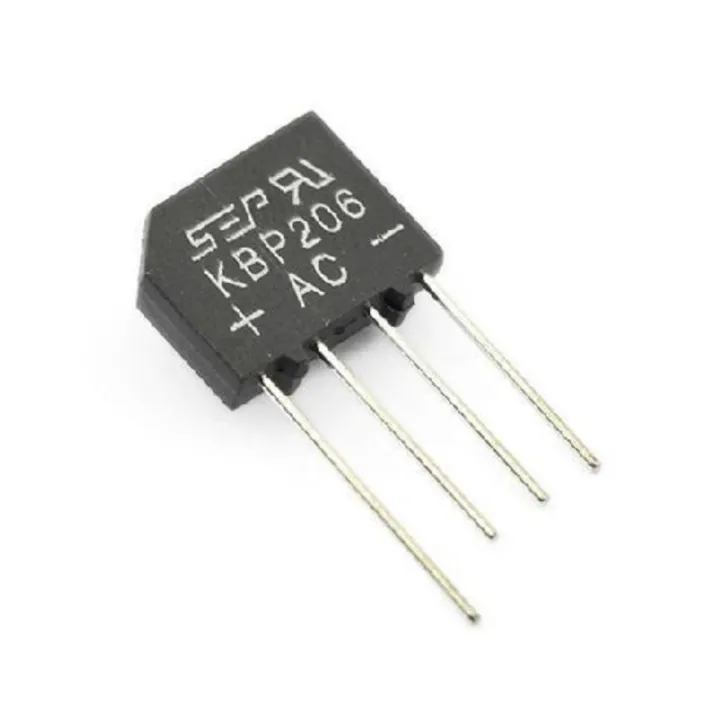

The KBP206 3A 600V Bridge Rectifier is a high-quality AC to DC conversion module engineered for reliable performance in power supplies, chargers, LED drivers, and general electronic circuits. With a capability of handling 3 Amps of current and up to 600 Volts, this bridge rectifier ensures smooth, stable, and efficient DC output. At Rafiq Electronics, we provide original and fresh KBP-series rectifiers perfect for small and large-scale electronic applications.
⚡ Key Features
✅ High Input Voltage Support (Up to 600V) – Handles high voltage AC input safely and efficiently.
🔌 3A Current Rating – Suitable for medium-power electronics, LED drivers, power adapters, and DC supply circuits.
⚙️ Full Wave Bridge Design – Converts AC to DC with high efficiency and reduced ripple.
🧩 4-Pin Compact PCB Mount Package – Easy to integrate into SMPS boards, transformers, and DIY circuits.
🔥 High Surge Overload Capability – Designed to tolerate sudden voltage spikes.
🛡️ Original Component – Supplied by Rafiq Electronics, ensuring reliability and durability.
📐 Electrical Specifications
-
Model: KBP 206
-
Voltage Rating: 600V
-
Current Rating: 3A
-
Pins: 4 (AC, AC, +, –)
-
Type: Full Wave Bridge Rectifier
-
Material: Epoxy Moulded Plastic Body
-
Mounting: Through-Hole
🔧 Applications
The KBP206 3A Bridge Rectifier is perfect for:
-
Power supply modules
-
SMPS circuits
-
LED drivers and chargers
-
Transformer-based rectification
-
DC motor circuits
-
Battery charging electronics
-
DIY projects & repair work
-
Voltage regulator circuits
-
Inverters and UPS boards
This component is widely used by hobbyists, technicians, engineers, and repair shops due to its strong voltage tolerance and stable output.
🔒 Why Choose KBP206 from Rafiq Electronics?
At Rafiq Electronics, we offer 100% original and tested electronic components. The KBP-206 is a long-life rectifier diode designed to deliver reliable AC to DC conversion even in demanding environments. Whether you are repairing an LED driver or building a DC power module, this component ensures high efficiency and durability.
If you require more amperes, voltage rating, or alternative bridge rectifier models, Rafiq Electronics can guide you with compatible options.
