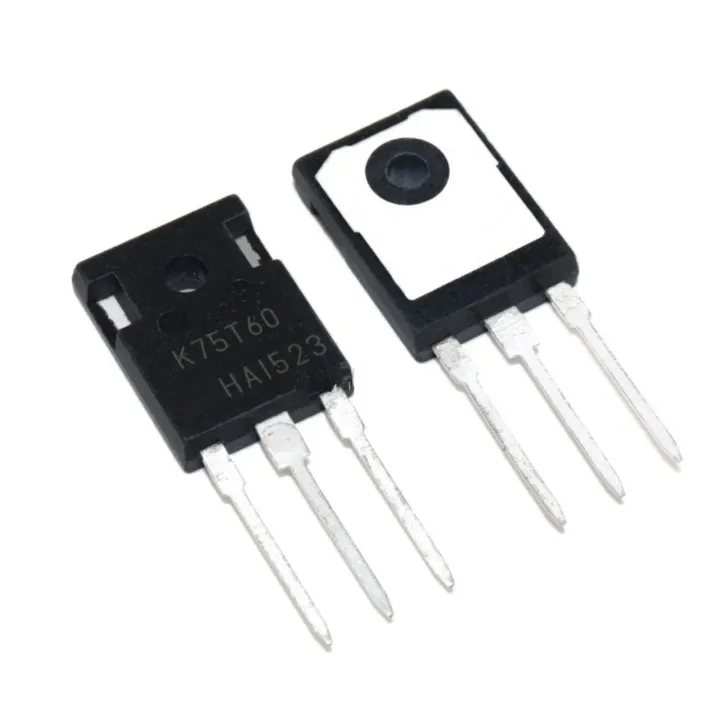

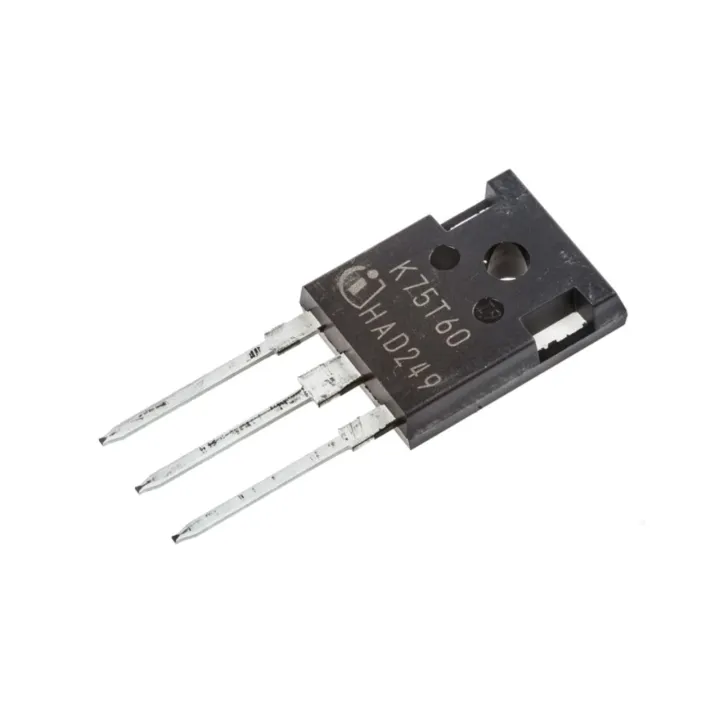

K75T60 600 V 75 A IGBT – High-Performance Power Switching Transistor for Inverters & Motor Drives

Description

The K75T60 IGBT is a premium power semiconductor device designed for high-voltage, high-current switching applications. Manufactured by Infineon Technologies under the TrenchStop™/FieldStop technology, this IGBT features low saturation voltage, fast recovery anti-parallel diode, and robust ruggedness for demanding industrial use. It is marked “K75T60” and cross-references IKW75N60T. All Datasheet+2AllDataSheet+2

Ideal for inverters, motor drives, UPS systems, welding machines, and high-performance power supplies, the K75T60 IGBT is engineered to deliver outstanding performance under heavy load and severe switching conditions. At 600 V V_CE rating and 75 A continuous current capability, it meets the needs of high-power systems while maintaining excellent thermal and switching characteristics. DataSheet-PDF.info+1

⚙️ Key Features

✔ 600 V Collector-Emitter Voltage Rating (V_CE): Suitable for high-voltage power circuits. All Datasheet+1
✔ 75 A Continuous Collector Current (I_C): Provides high load-current capacity for demanding applications. All Datasheet
✔ Low Saturation Voltage (V_CE(sat) ~1.5 V typ.): Reduces conduction losses and improves efficiency. Infineon
✔ Short-Circuit Withstand Time (~5 µs): Ensures ruggedness under fault conditions. Infineon
✔ Maximum Junction Temperature up to ~175 °C: Suitable for high-temperature environments. Infineon
✔ TrenchStop™/FieldStop Technology with Built-In Anti-Parallel Diode: Optimised for fast switching and reduced EMI. electronicaembajadores.com

🔧 Technical Specifications (Highlights)

• Part Number: K75T60 (equivalent IKW75N60T) Datasheet4U

• Collector-Emitter Voltage (V_CE): 600 V

• Collector Current (I_C): 75 A @ 25 °C

• Saturation Voltage (V_CE(sat)): ~1.5 V typ.

• Short-Circuit Withstand Time: approx. 5 µs

• Package: PG-TO-247-3-21 (also TO-247-3) AllDataSheet

• Operating Temperature Range: –40 °C to +175 °C (junction)

🧰 Typical Applications

• Industrial inverter circuits and solar inverters

• High-power motor drives and HVAC systems

• Uninterruptible Power Supplies (UPS) and switching power supplies

• Welding machines and battery charging stations

• Robotics, automation systems and heavy-duty switching electronics

Whether you’re designing or repairing heavy-duty power electronics, the K75T60 IGBT offers the durability and performance needed for long-term reliability.

🌟 Why Choose This IGBT from Rafiq Electronics?

At Rafiq Electronics, we provide genuine high-performance semiconductors like the K75T60 IGBT, tested for authenticity and quality. Our components are ideal for professionals, system integrators, and serious hobbyists who don’t compromise on reliability. Choose us for verified performance and trusted service.
