Description
Product details of Hyrbid Pak Tech Mppt Solar Charge controller 70 ampere with DC Load Connections 12/24 Volt 1200/2400 Watt
Digital display & Led battery Level indicator
96% efficiency in 12-V systems and 97% efficiency in 24-v systems
Wide input voltage range: 15 V to 100 V
High rated output current: 70A
Over-charge and surge protections

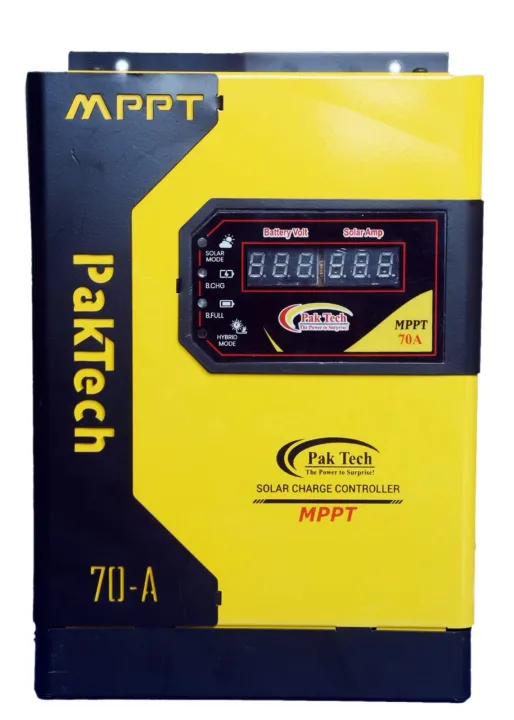

Pak Tech MPPT Solar Charge Controller 70A
Smart Digital DC 12V/24V System
Over-temperature and ambient light detection capabilities
Hybrid Option available to connect UPS
UPS will disconnect from Wapda (Electricity input) at day time to save electricty
Hybrid Function switch Automatically (Solar to Wapda or Wapda to Solar)
Antidusk kit(Optional) for filter Air

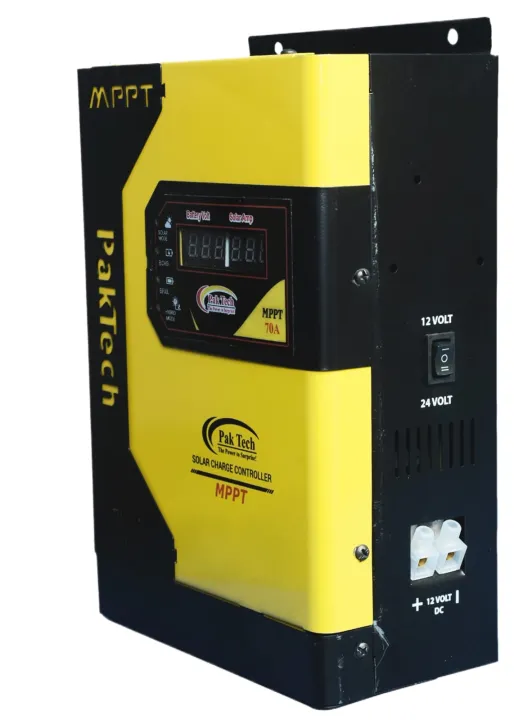

Hybrid Pak Tech MPPT Solar Charge Controller 12V/24V 70A

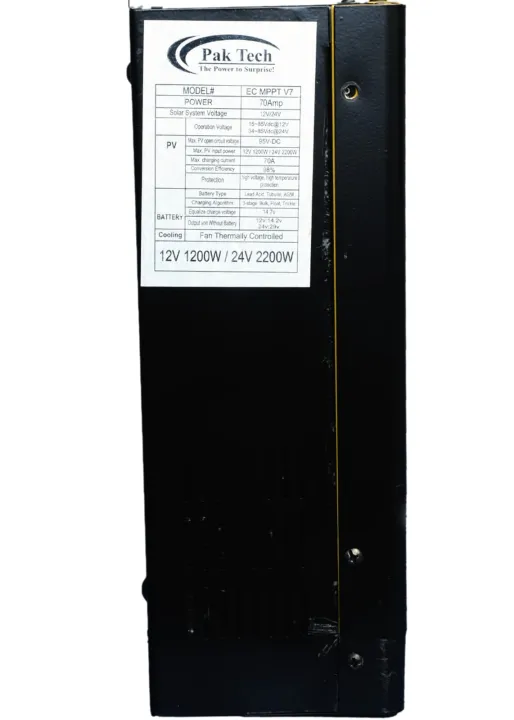

MODEL
EC MPPT 07
POWER
70 Ampere Solar System Voltage 12V/24V
PV Operation Voltage15-100Vdc @12V
34-100 V dc @ 24V
Max. PV open circuit voltage
90V DC Max.
PV input power 12V 1000W / 24V 2000W
Max. charging current
70A Conversion Efficiency 98%
Protection
High voltage
High temperature protection
BATTERY
Lead Acid
Tubular
AGM
Charging Algorithm 3-StageB
Bulk
Float
Trickle Equalize
charge voltage
14.7v Output volt
Without Battery 12V: 14.2V
Without Battery 24V: 29V
COOLINGFAN
THERMALLY CONTROLLED
Automatic Fan On/Off
Package included:
1 x Solar MPPT Controller
1 x Manual
