Description

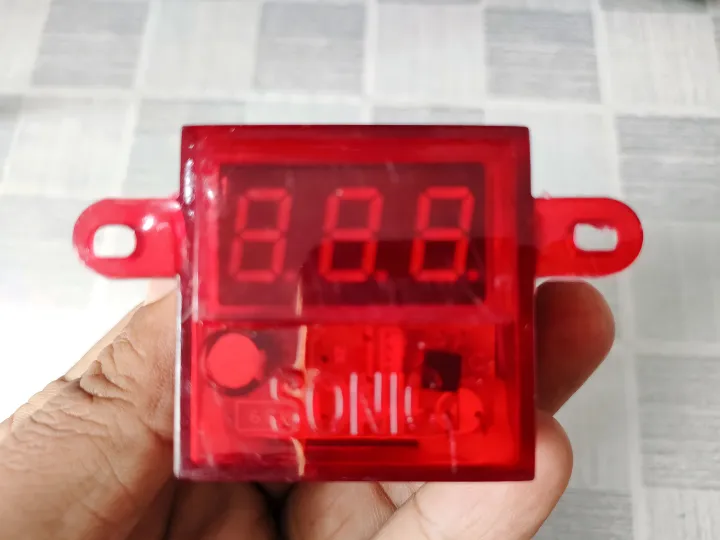

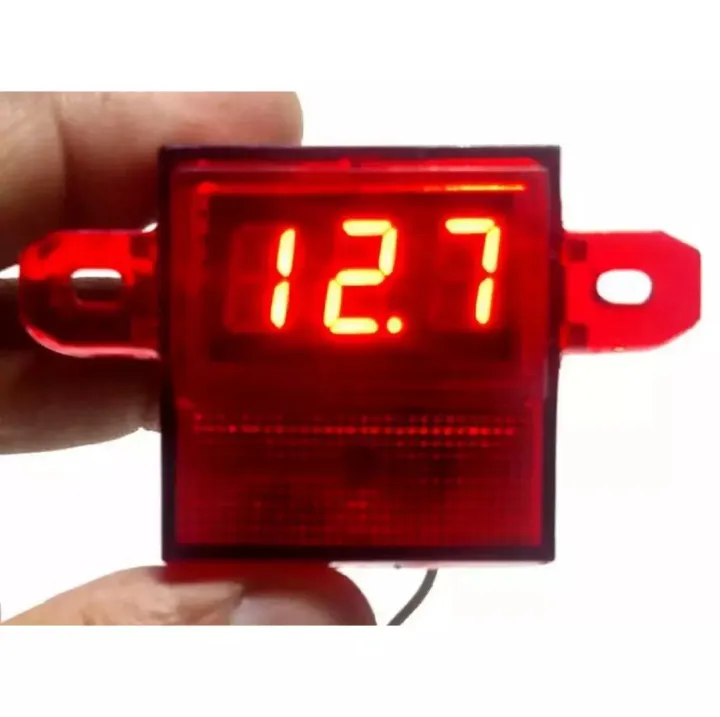

12V DC Voltmeter 8-30V
Professional 12V DC voltmeter measuring 8-30V range with bright LED display. Ideal for automotive batteries, solar panels, and industrial control panels.
12V DC Voltmeter 8-30V: Precision LED Digital Panel Meter
12V DC Voltmeter 8-30V Specifications
Key Applications
- Automotive battery voltage monitoring
- Solar power system charge controllers
- Industrial control panel instrumentation
- UPS battery backup systems
- DIY electronics projects
Technical Features
- Reverse polarity protection circuitry
- Low power consumption (< 20mA)
- IP65 dust/water resistant (front panel)
- Wide operating temperature: -10°C to 70°C
- Easy panel mounting with retention clips
1, the voltmeter wiring is simple, only need to pick two lines, the table reversal protection, reverse does not burn.
2, the voltmeter start voltage is low, the red just 2.5V, just 2.7V Green, the blue just 3.0V will be able to measure correctly, start with the price of two-wire voltmeter voltage is the lowest anywhere in the world. This will greatly facilitate the use of the lithium battery, 18650 battery users. When the voltage is lower than 3.5V, the display brightness diminishes, but does not affect the correct measurement.
3, in order to achieve optimum measurement accuracy, the voltmeter will be different according to the measured voltage automatically move the decimal point position. Measure the voltage below 10V, displayed after the decimal point two; 10V voltage measurements displayed after the decimal point one. That is able to take care of the battery user needs, but also cater to the needs of the higher voltage measurement on the measurement accuracy.
4, the voltmeter can be used for motorcycles, cars and other monitoring battery voltage, timely grasp battery status. Other voltages can also be used for measurement purposes.
