Description

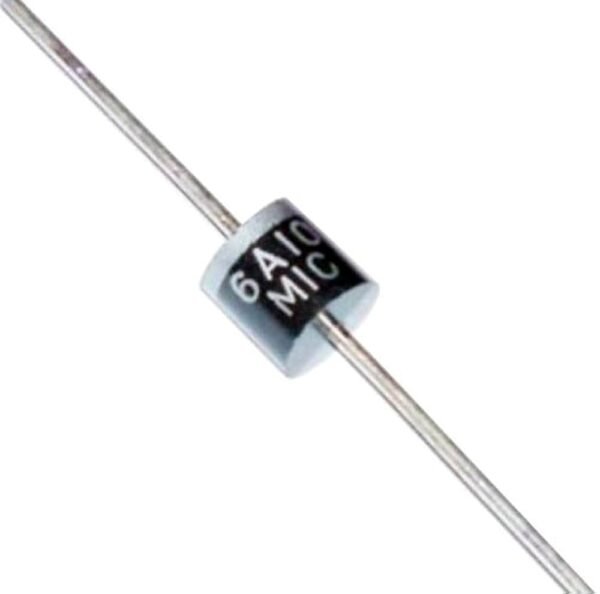

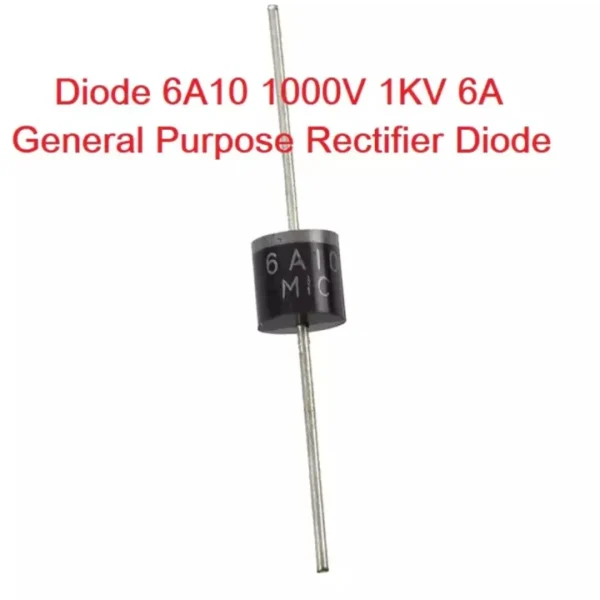

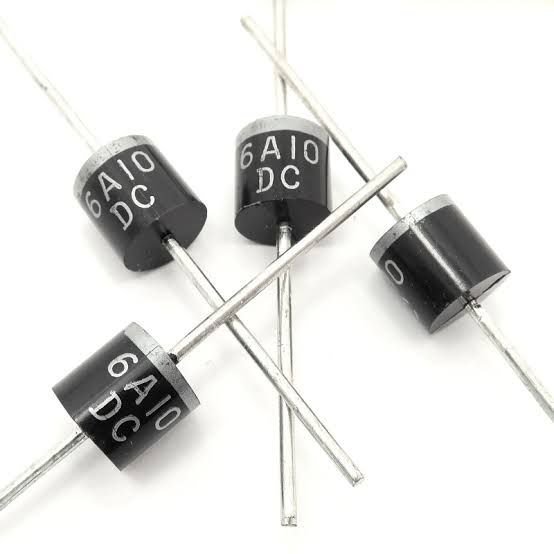

The 6A Diode 6A10 1000V Silicon Rectifier is a high-performance, general-purpose rectifier diode designed for AC to DC conversion, battery chargers, and power supply circuits.
This 6A10 diode offers excellent reliability, low forward voltage drop, and high surge current capability, making it perfect for DIY electronics, solar inverters, and industrial applications.
🔹 Technical Specifications:
✅ Model: 6A10
✅ Type: Silicon Rectifier Diode
✅ Maximum Reverse Voltage (Vrrm): 1000V
✅ Average Forward Current (If): 6A Continuous
✅ Forward Voltage Drop (Vf): Approx. 1.0V at 6A
✅ Peak Surge Current (Ifsm): Up to 200A
✅ Operating Temperature Range: -55°C to +150°C
✅ Mounting Type: Axial Lead (Through-Hole)
✅ Package Type: DO-201AD
✅ Material: High-Quality Silicon Semiconductor
🔹 Key Features & Highlights:
✅ High Current Capacity – Handles up to 6A continuous load safely.
✅ High Voltage Tolerance – Operates up to 1000V reverse voltage.
✅ Low Power Loss – Low forward voltage drop improves efficiency.
✅ Reliable Performance – Ideal for heavy-duty circuits and rectifiers.
✅ Fast Response Time – Provides smooth AC to DC conversion.
✅ Durable Silicon Build – Ensures long service life and stability.
✅ Easy to Mount – Axial lead design for simple PCB or wire connection.
🔹 Applications:
✔ Power Supply Circuits (AC to DC)
✔ Battery Chargers & Inverter Systems
✔ Solar Power Applications
✔ Motor Control & Rectifier Bridges
✔ DIY Electronics & Repair Projects
🔹 How to Use:
1️⃣ Identify the cathode side (marked with a silver band).
2️⃣ Connect anode to the positive terminal and cathode to the negative.
3️⃣ Ensure the diode operates within rated current and voltage.
4️⃣ Solder properly for secure connection and long-lasting performance.
