Description

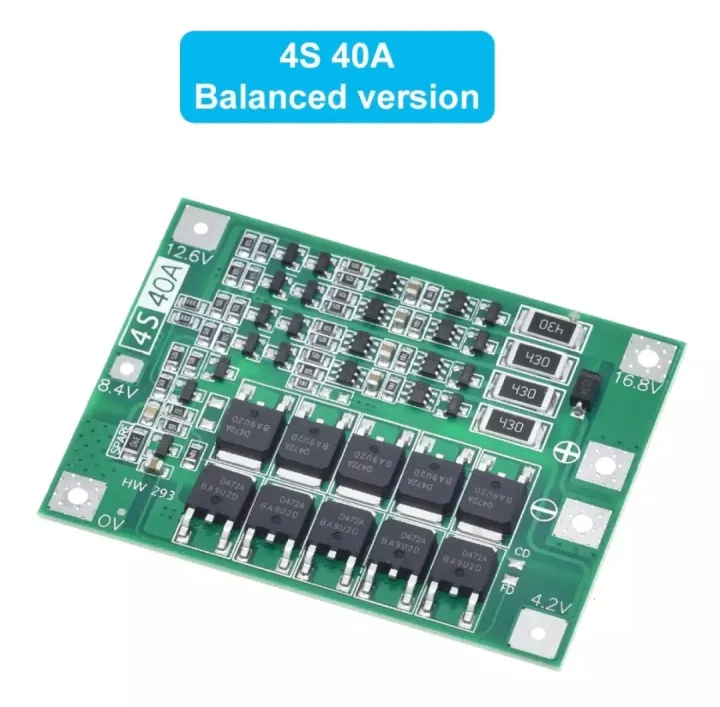

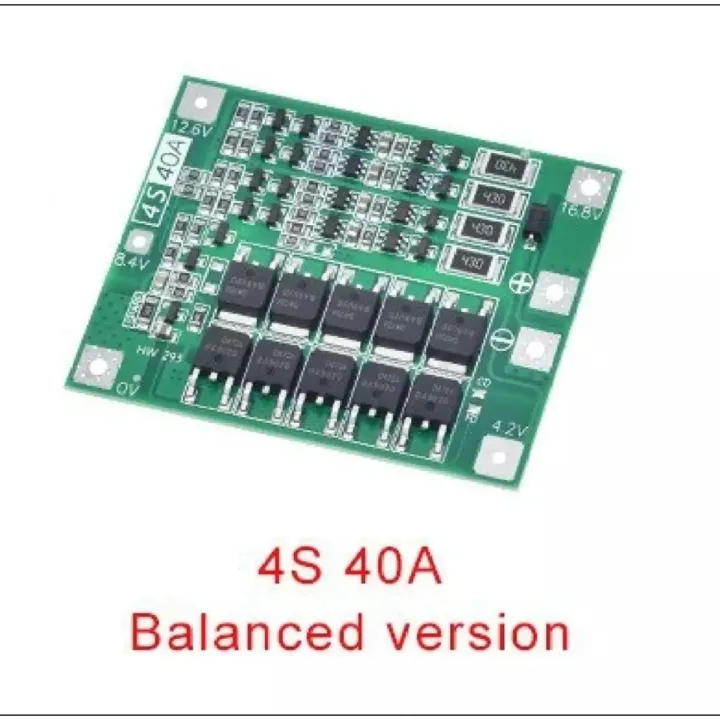

🔋 4S 40A BMS Balanced Version ek advanced Battery Management System hai jo specially 3.7V Lithium-ion 4S battery packs ke liye design hua hai. Isme passive cell balancing feature hai jo har cell ka voltage equal rakhta hai, jis se battery ka performance aur life dono improve hote hain. Perfect for e-bikes, scooters, solar storage, DIY lithium packs.
✨ Key Highlights:
✅ Balanced Version: Passive cell balancing for equal voltage on all 4 cells.
✅ High Current Support: 40A continuous discharge capacity – ideal for high power projects.

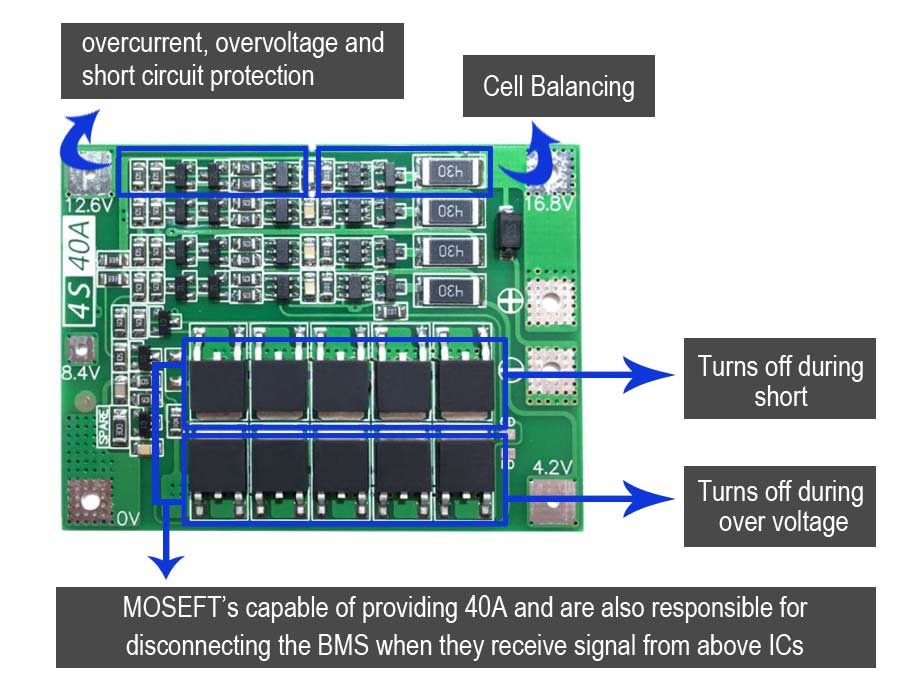

✅ Full Protection System: Over-charge, Over-discharge, Over-current & Short-circuit protection.
✅ Optimized for 3.7V Lithium-ion: 4S (14.8V nominal / 16.8V max).

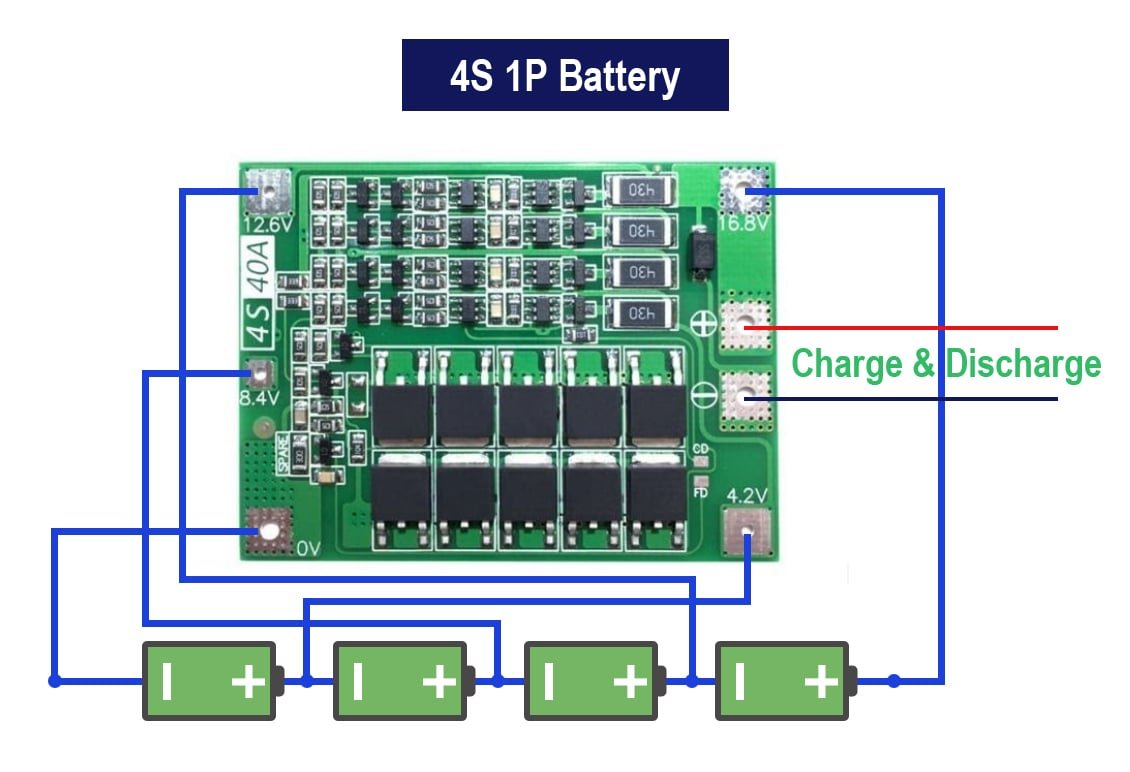

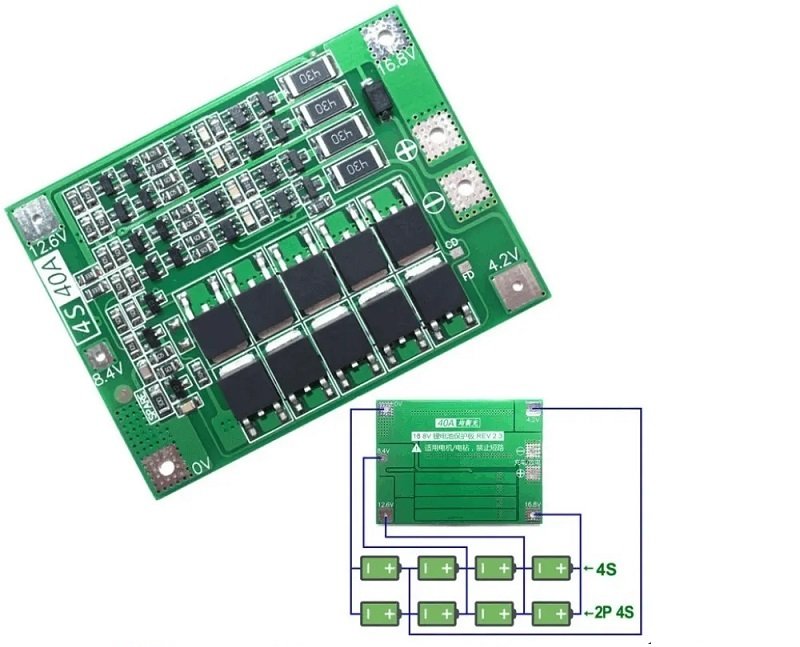

✅ Easy Installation: Compact design with clear wiring points – perfect for DIY builders.
📊 Technical Specifications:
-
Battery Type: Lithium-ion (3.7V nominal)
-
Configuration: 4S (4 cells in series)
-
Nominal Voltage: 14.8V
-
Charge Cut-off Voltage: 16.8V
-
Continuous Discharge Current: 40A
-
Protection: Overcharge, Over-discharge, Over-current, Short Circuit
-
Balancing Function: Yes – Passive Balancing
