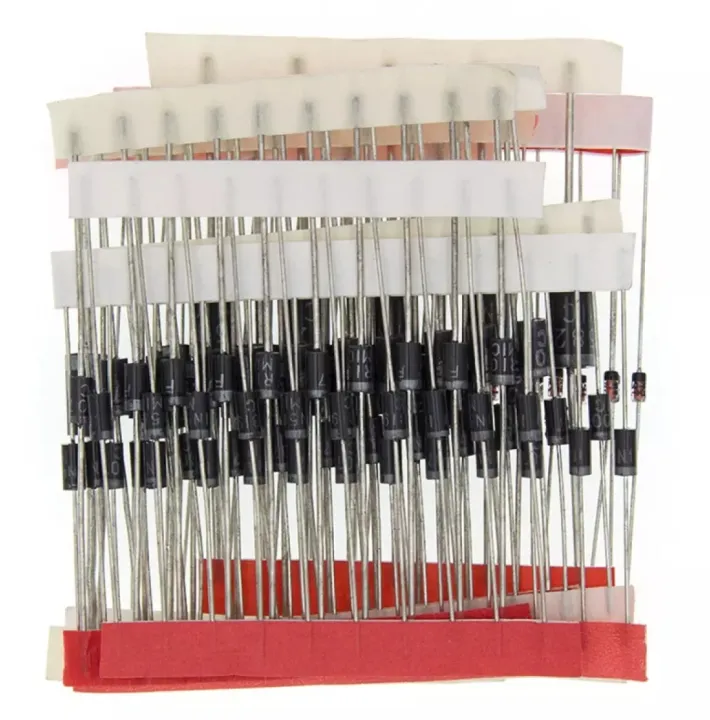

1N4007 Diode – 1000V 1A Rectifier Diode for Power Supply & Electronics Projects

Description

🔌 Product Overview:
The 1N4007 Diode is a general-purpose silicon rectifier diode designed for high-voltage and medium-current applications. Widely used in power supplies, adapters, chargers, and electronic circuits, it offers stable performance and durability.

✨ Key Features:

• ✅ High Reverse Voltage: 1000V maximum reverse voltage rating

• ⚡ Forward Current: 1A continuous forward current for most low-power circuits

• 🔄 Rectification: Ideal for converting AC to DC in power supplies

• 🛡️ Reliable Design: High surge current capability and robust construction

• 💡 Low Forward Voltage Drop: Improves efficiency in circuits

• 🧩 Easy to Use: Standard DO-41 axial package for quick PCB mounting

📐 Technical Specifications:

• Model: 1N4007

• Package Type: DO-41

• Maximum Repetitive Peak Reverse Voltage (VRRM): 1000V

• Average Forward Current (IF): 1A

• Non-Repetitive Peak Surge Current (IFSM): 30A

• Forward Voltage Drop (VF): ~1.1V @ 1A

• Operating Temperature: -55°C to +150°C

🎯 Applications:

• 🔌 Power Supplies: AC-DC rectifiers

• ⚡ Chargers & Adapters: Safe and efficient current flow

• 🛠️ DIY Electronics: Hobby projects & educational kits

• 🧩 General Purpose Circuits: Protection and rectification use
