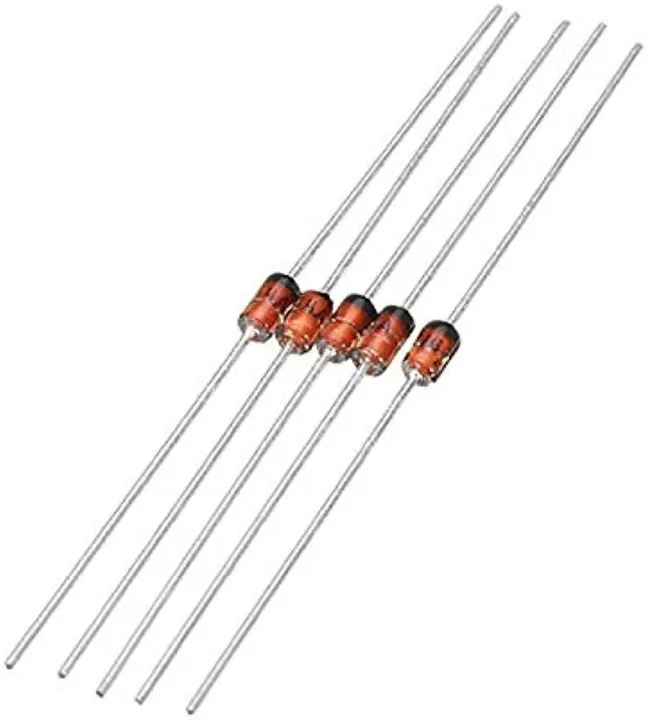

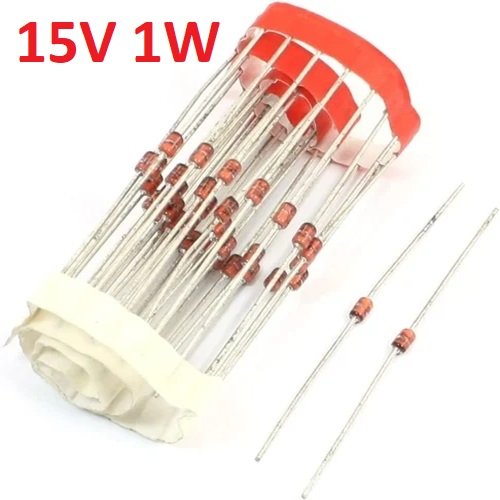

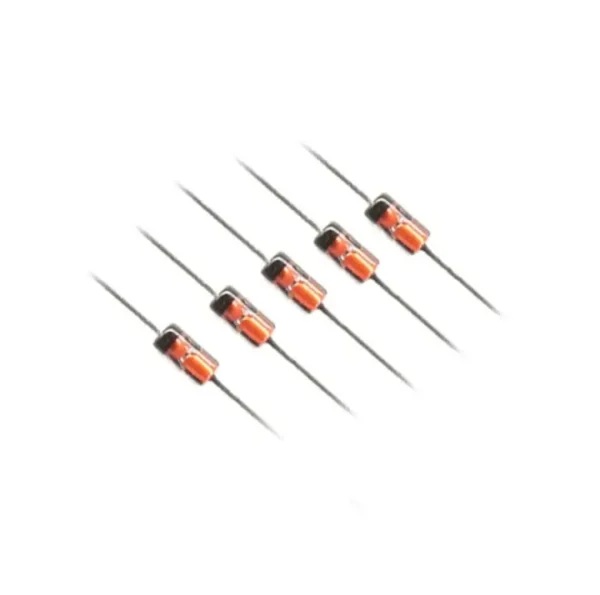

15V Zener Diode 1W 1N4744A – Voltage Regulator Diode for Electronics & DIY Projects

Description

🔧 Overview

The 15V Zener Diode 1W (Model: 1N4744A) is a high-precision voltage-regulating diode designed for stable and consistent performance in electronic circuits. Whether you are working on DIY electronics, voltage regulation, circuit protection, battery circuits, or hobby projects, this diode ensures reliability and durability.
This product is available at Rafiq Electronics, where we provide only tested and high-quality electronic components.

✨ Key Features

🔌 Stable Voltage Regulation

• ✅ Maintains a precise 15V regulation for clean output

• ⚙️ Ideal for power supply circuits, voltage references, and stabilization

• ⚡ Prevents voltage fluctuations in sensitive components

🛡 Circuit Protection

• ✅ Protects circuits from over-voltage

• 🔥 Prevents damage in power-sensitive electronics

• ⚙️ Works perfectly in AC to DC regulated systems

🔩 High Power Rating – 1W

• ✅ Withstands up to 1 watt dissipation

• 🔧 Suitable for small to medium power applications

• 🌡 Designed for stable performance even under load

📐 Model Details (1N4744A)

• ✅ Standard DO-41 package

• 📏 Forward current & leakage are within industry specifications

• ⚙️ Universally compatible with most electronic boards and circuits

🧪 Applications

🔋 Power Supply Circuits

• Voltage reference

• Regulation and stabilization

• Noise filtering assistance

📡 Hobby & DIY Electronics

• Arduino and microcontroller systems

• Sensor interfacing

• Educational circuits and lab experiments

🔧 Repair & Maintenance

• TV, DVD, LCD repairs

• SMPS power supply repairs

• Old circuit replacements

📊 Technical Specifications (1N4744A)

• Zener Voltage: 15V

• Power Rating: 1W

• Model: 1N4744A

• Package: DO-41 glass body

• Tolerance: Standard

• Polarity: Cathode marked

• Operating Temperature: −55°C to +150°C

🏪 Why Buy From Rafiq Electronics?

At Rafiq Electronics, we ensure:

• High-quality components

• Fresh stock with reliable performance

• Secure packaging and fast delivery

• Trusted support for beginners and professionals

A perfect choice for students, hobbyists, technicians, and engineers who need a dependable 15V Zener Diode 1W 1N4744A for daily electronic projects.
